具有三态输出的 9 位总线接口触发器 24-SOIC -40 to 85
These 9-bit flip-flops feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing wider buffer registers, I/O ports, bidirectional bus drivers with parity, and working registers.
With the clock-enable CLKEN\\\\ input low, the nine D-type edge-triggered flip-flops enter data on the low-to-high transitions of the clock. Taking CLKEN\ high disables the clock buffer, thus latching the outputs. Taking the clear CLR\\\\ input low causes the nine Q outputs to go low, independently of the clock.
A buffered output-enable OE\\\\ input can be used to place the nine outputs in either a normal logic state high or low logic level or a high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without need for interface or pullup components.
When VCC is between 0 and 2.1 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 2.1 V, OE\ should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
The SN54ABT823 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ABT823 is characterized for operation from -40°C to 85°C.
频率 125 MHz
电源电压DC 4.50V ~ 5.50V
输出接口数 9
输出电流 64.0 mA
电路数 1
通道数 9
时钟频率 200 MHz
位数 9
传送延迟时间 7.10 ns
极性 Non-Inverting
电压波节 5.00 V
静态电流 38 mA
输入电容 4 pF
输出电流驱动 -500 µA
输入数 9
工作温度Max 85 ℃
工作温度Min 40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount

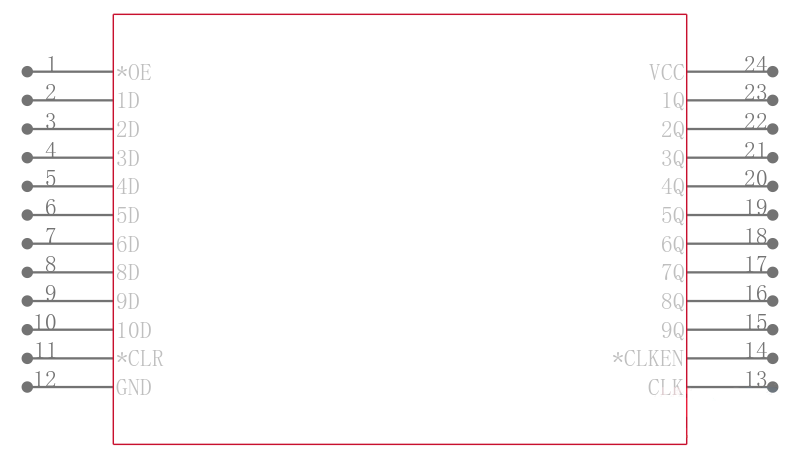

引脚数 24
封装 SOIC-24
长度 15.4 mm
宽度 7.52 mm
高度 2.35 mm
封装 SOIC-24
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ABT823DWR TI 德州仪器 | 当前型号 | 当前型号 |
SN74ABT823DBR 德州仪器 | 类似代替 | SN74ABT823DWR和SN74ABT823DBR的区别 |
SN74ABT823DW 德州仪器 | 类似代替 | SN74ABT823DWR和SN74ABT823DW的区别 |
