16位缓冲器/驱动器,具有三态输出 16-BIT BUFFER/DRIVER WITH 3-STATE OUTPUTS
DESCRIPON
This 16-bit buffer/driver is designed for 1.65-V to 3.6-V VCC operation.
The SN74LVC16244A is designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.
FEATURES
• Member of the Texas Instruments Widebus™ Family
• Operates From 1.65 V to 3.6 V
• Inputs Accept Voltages to 5.5 V
• Max tpd of 4.1 ns at 3.3 V
• Typical VOLPOutput Ground Bounce < 0.8V at VCC= 3.3V, TA= 25°C
• Typical VOHVOutput VOH Undershoot > 2V at VCC = 3.3V, TA= 25°C
• Ioff Supports Partial-Power-Down Mode Operation
• Supports Mixed-Mode Signal Operation on All Ports 5-V Input/Output Voltage With 3.3-V VCC
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model A114-A
– 1000-V Charged-Device Model C101
电源电压DC 2.00V ~ 3.60V
输出接口数 16
位数 16
传送延迟时间 5.20 ns
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
输出电流驱动 -1.00 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
安装方式 Surface Mount
引脚数 54

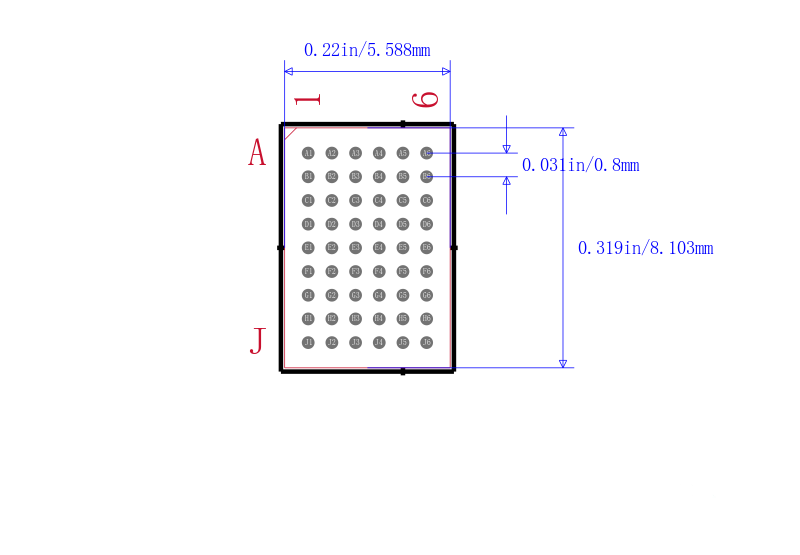

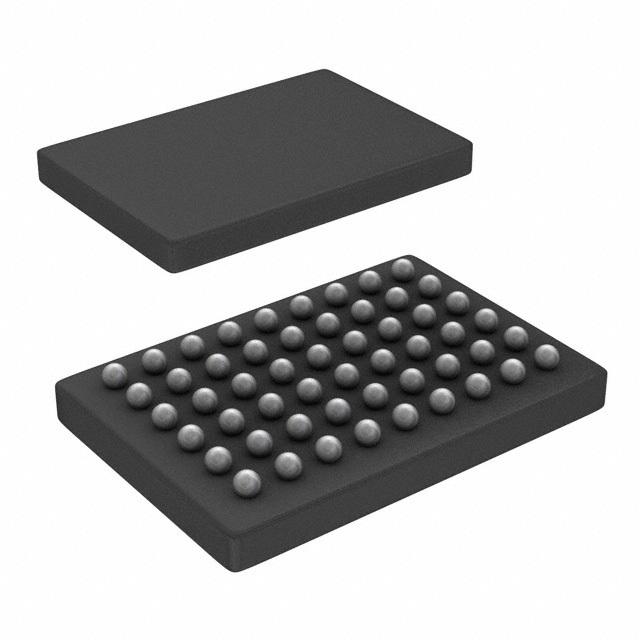

封装 TFBGA-54
长度 8 mm
宽度 5.5 mm
高度 0.8 mm
封装 TFBGA-54
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LVC16244AGRDR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC16244AZRDR 德州仪器 | 类似代替 | SN74LVC16244AGRDR和SN74LVC16244AZRDR的区别 |
SN74LVCH16244AZRDR 德州仪器 | 类似代替 | SN74LVC16244AGRDR和SN74LVCH16244AZRDR的区别 |
SN74LVCH16244AGRDR 德州仪器 | 类似代替 | SN74LVC16244AGRDR和SN74LVCH16244AGRDR的区别 |
