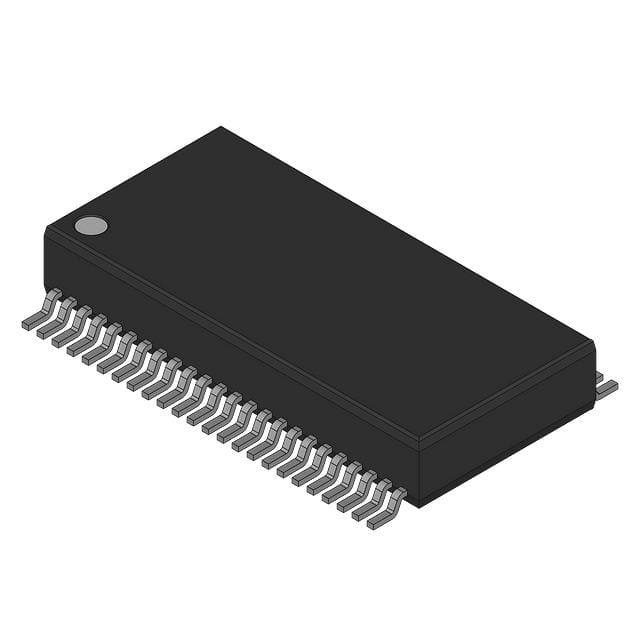

SN74AHCT16374DLR

16位边沿触发的D型触发器具有三态输出 16-BIT EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH 3-STATE OUTPUTS

description

The ’AHCT16374 devices are 16-bit edge-triggered D-type flip-flops with 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

• Members of the Texas Instruments Widebus™ Family

• EPIC™ Enhanced-Performance Implanted CMOS Process

• Inputs Are TTL-Voltage Compatible

• Distributed VCC and GND Pins Minimize High-Speed Switching Noise

• Flow-Through Architecture Optimizes PCB Layout

• Latch-Up Performance Exceeds 250 mA Per JESD 17

• ESD Protection Exceeds 2000 V Per

   MIL-STD-883, Method 3015; Exceeds 200 V

   Using Machine Model C = 200 pF, R = 0

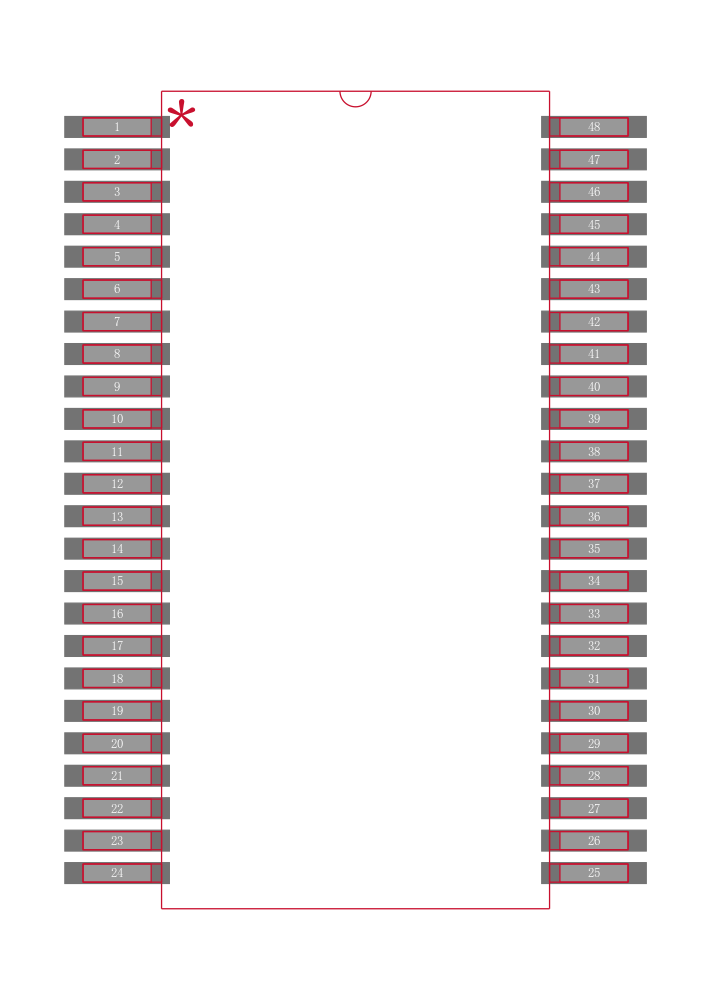

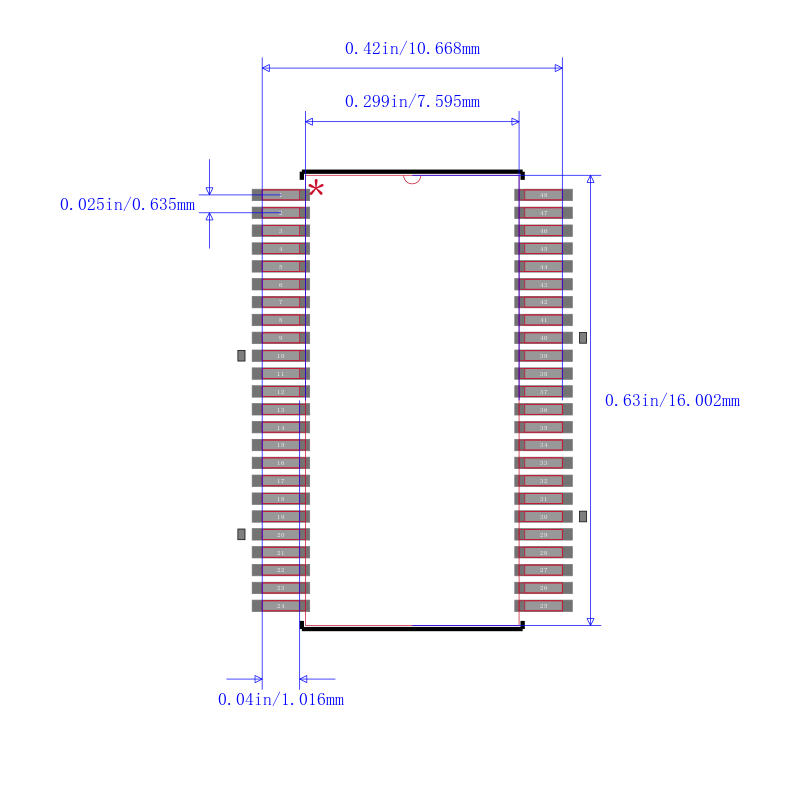

• Package Options Include Plastic Shrink

   Small-Outline DL, Thin Shrink

   Small-Outline DGG, and Thin Very

   Small-Outline DGV Packages and 380-mil

   Fine-Pitch Ceramic Flat WD Package

   Using 25-mil Center-to-Center Spacings
