双上升沿触发的D型触发器具有清零和预设 DUAL POSITIVE-EDGE-TRIGGERED D-TYPE FLIP-FLOP WITH CLEAR AND PRESET
The SN74ACT74-EP is a dual positive-edge-triggered D-type flip-flop.
A low level at the preset PRE\\\\ or clear CLR\\\\ input sets or resets the outputs, regardless of the levels of the other inputs. When PRE\ and CLR\ are inactive high, data at the data D input meeting the setup-time requirements is transferred to the outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold-time interval, data at D can be changed without affecting the levels at the outputs.
频率 210 MHz
电源电压DC 4.50V min
输出接口数 1
输出电流 24.0 mA
电路数 2
时钟频率 210 MHz
位数 2
极性 Non-Inverting, Inverting
电压波节 5.00 V
输入电容 3 pF
输出电流驱动 -1.00 mA
输入数 1
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount

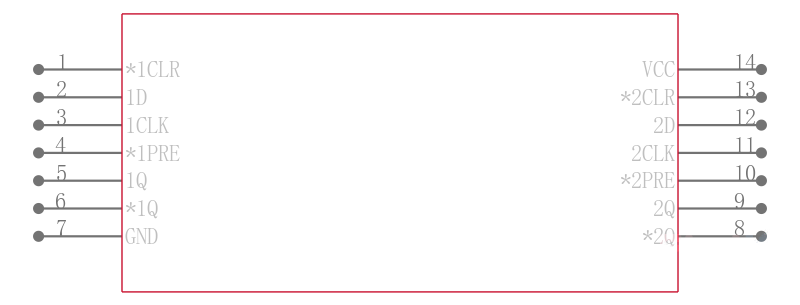

引脚数 14
封装 SOIC-14
长度 8.65 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-14
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ACT74MDREP TI 德州仪器 | 当前型号 | 当前型号 |
SN74ACT74DR 德州仪器 | 类似代替 | SN74ACT74MDREP和SN74ACT74DR的区别 |
SN74ACT74D 德州仪器 | 类似代替 | SN74ACT74MDREP和SN74ACT74D的区别 |
