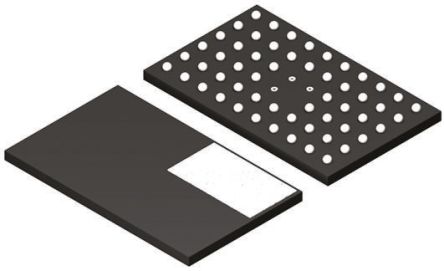

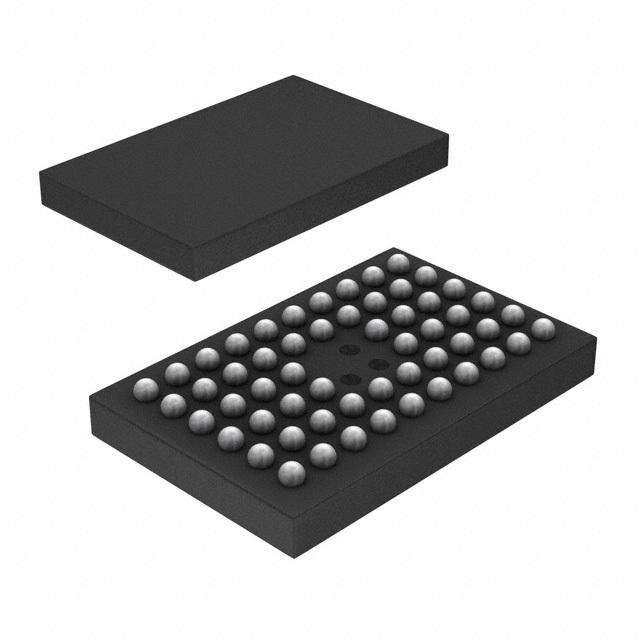

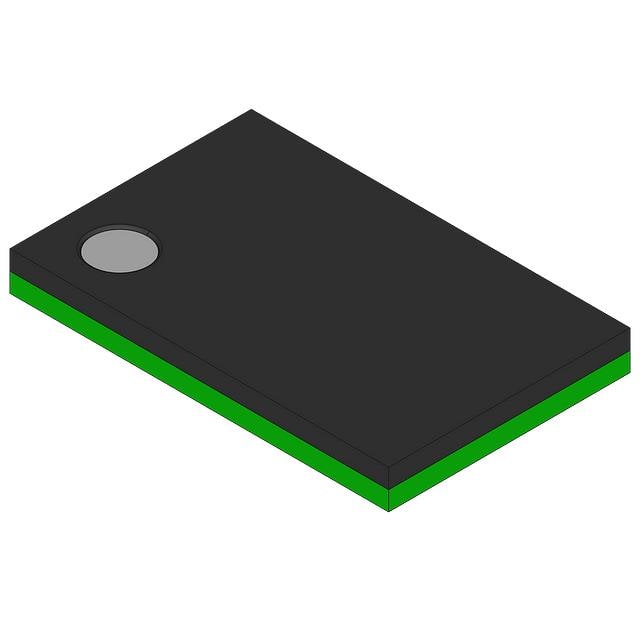

TEXAS INSTRUMENTS SN74AVC16T245ZQLR 收发器, 转换, 1.2 V至3.6 V, BGA-56
74AVC 系列,Texas Instruments
### 74AVC 系列
得捷:
IC TRANSLTR BIDIRECTIONAL 56BGA
立创商城:
SN74AVC16T245ZQLR
欧时:
### 74AVC 系列,Texas Instruments### 74AVC 系列
e络盟:
收发器, 74AVC16T245, 1.2V至3.6V, BGA-56
艾睿:
If you are looking for a device to shift between voltage levels in your microprocessor-based circuit, then the SN74AVC16T245ZQLR level translator from Texas Instruments is for you. With a 3-state output, this is power management at its best. This level shifter has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.2 V, while its maximum is 3.6 V.
安富利:
Bus XCVR Dual 16-CH 3-ST 56-Pin BGA MICROSTAR JUNIOR T/R
Chip1Stop:
Voltage Level Translator 56-Pin BGA MICROSTAR JUNIOR T/R
Verical:
Voltage Level Translator 16-CH Bidirectional 56-Pin BGA MICROSTAR JUNIOR T/R
Newark:
# TEXAS INSTRUMENTS SN74AVC16T245ZQLR Transceiver, 74AVC16T245, 1.2 V to 3.6 V, BGA-56
Win Source:
Voltage Level Translator Bidirectional 2 Circuit 8 Channel 380Mbps 56-BGA MICROSTAR JUNIOR 7.0x4.5
DeviceMart:
IC BUS TRANSCVR 16BIT 56BGA
电源电压DC 1.20V ~ 3.60V
电路数 2
通道数 16
针脚数 56
位数 16
传送延迟时间 5.00 ns
电压波节 1.20 V, 1.50 V, 1.80 V, 2.50 V, 3.30 V
工作温度Max 85 ℃
工作温度Min -40 ℃
输出通道数 1
电源电压 1.2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 56
封装 BGA-56
长度 7 mm
宽度 4.5 mm
高度 0.75 mm
封装 BGA-56
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 通信与网络, 信号处理, 消费电子产品, 自动化与过程控制
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AVC16T245ZQLR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AVC16T245GQLR 德州仪器 | 完全替代 | SN74AVC16T245ZQLR和SN74AVC16T245GQLR的区别 |
74AVCH16T245ZQLR 德州仪器 | 类似代替 | SN74AVC16T245ZQLR和74AVCH16T245ZQLR的区别 |
74AVC16T245DGGRE4 德州仪器 | 类似代替 | SN74AVC16T245ZQLR和74AVC16T245DGGRE4的区别 |
