具有三态输出的3.3V ABT 32位透明D型锁存器 3.3-V ABT 32-BIT TRANSPARENT D-TYPE LATCH WITH 3-STATE OUTPUTS
This d-type low-level latch manufactured by Texas Instruments contains real time information and can be pushed through it once it is enabled. With a 3-state output, this is power management at its best. This latch has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 3 V. Its minimum operating supply voltage of 2.7 V, while its maximum is 3.6 V. It has 32 channels per chip.
电源电压DC 2.70V ~ 3.60V
输出接口数 32
输出电流 64.0 mA
电路数 4
通道数 32
位数 32
传送延迟时间 4.30 ns
电压波节 3.30 V, 2.70 V
静态电流 10.0 mA
静态电流 10 mA
输出电流驱动 -500 µA
输入数 32
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 96

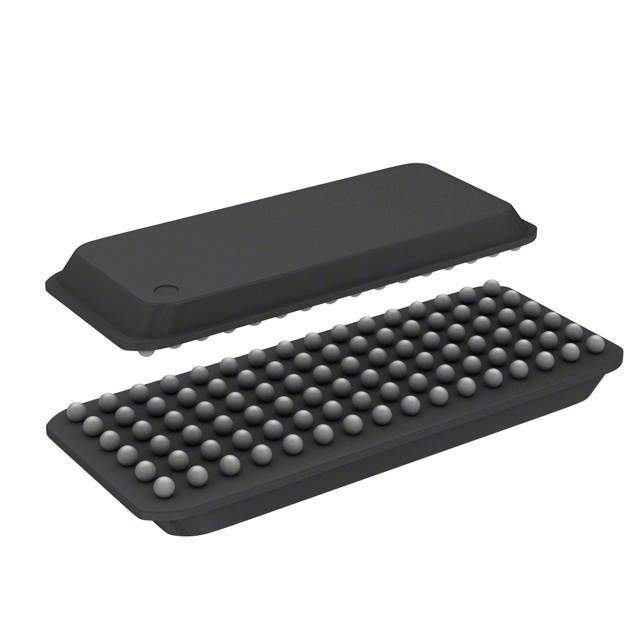

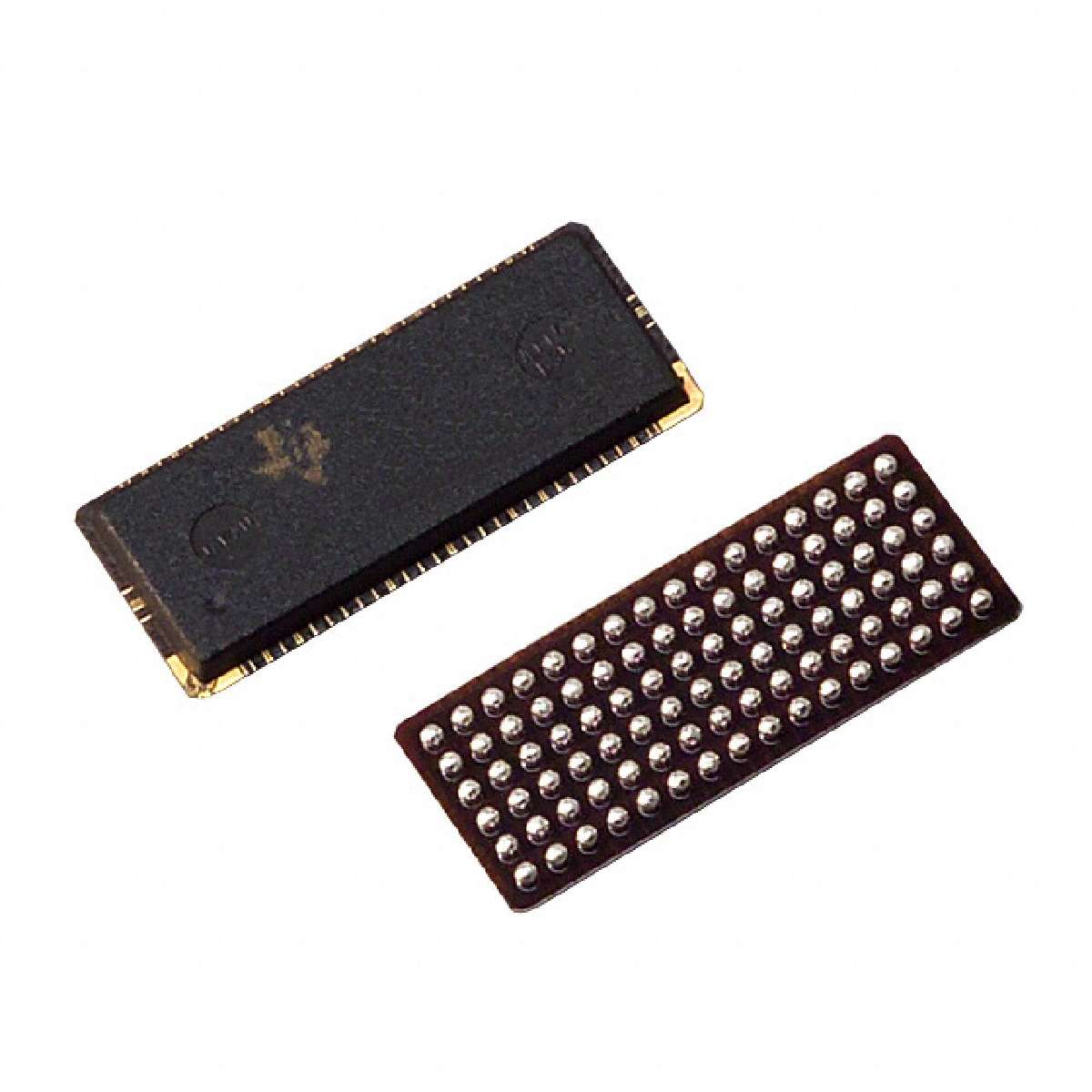

封装 BGA-96
长度 13.5 mm
宽度 5.5 mm
高度 0.85 mm
封装 BGA-96
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVTH32373ZKER TI 德州仪器 | 当前型号 | 当前型号 |
CLVTH32373IGKEREP 德州仪器 | 完全替代 | SN74LVTH32373ZKER和CLVTH32373IGKEREP的区别 |
V62/04721-01XA 德州仪器 | 完全替代 | SN74LVTH32373ZKER和V62/04721-01XA的区别 |
SN74LVTH32373GKER 德州仪器 | 类似代替 | SN74LVTH32373ZKER和SN74LVTH32373GKER的区别 |
