20位总线接口D类锁存器具有三态输出 20-BIT BUS-INTERFACE D-TYPE LATCHES WITH 3-STATE OUTPUTS
This d-type low-level latch from Texas Instruments creates a barrier of information and will open once it is enabled. With a 3-state output, this is power management at its best. This latch has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 20 channels per chip.
电源电压DC 5.00 V, 5.50 V max
输出接口数 20
输出电流 12.0 mA
电路数 8
通道数 20
位数 20
极性 Non-Inverting
电压波节 5.00 V
静态电流 89 mA
输入数 20
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount

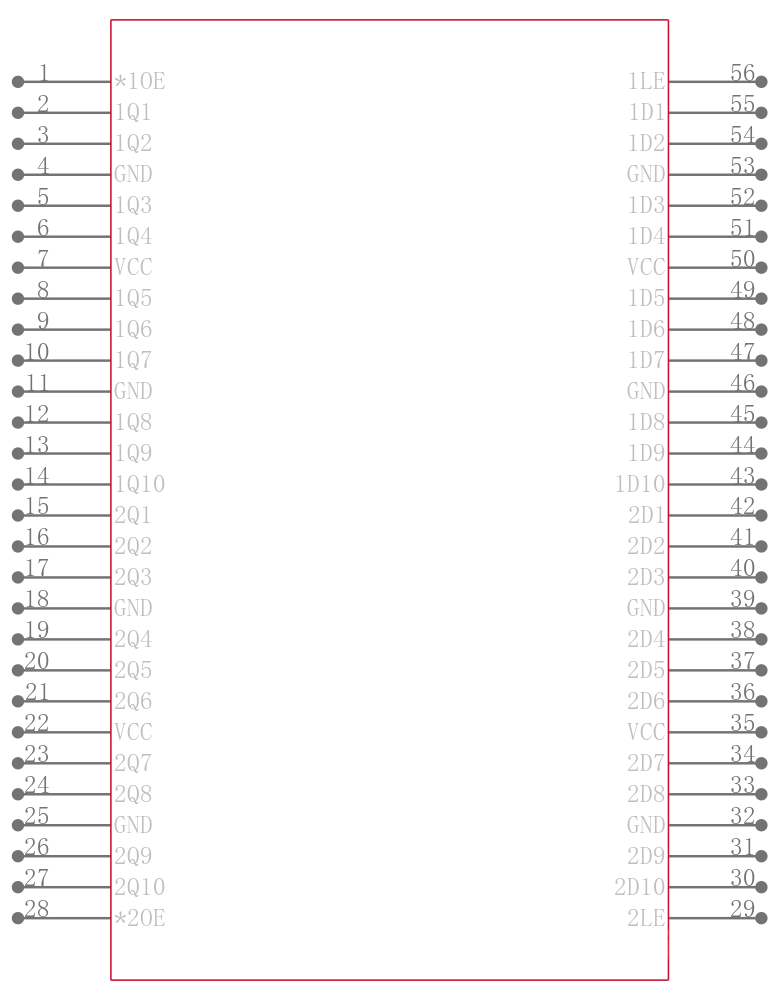

引脚数 56

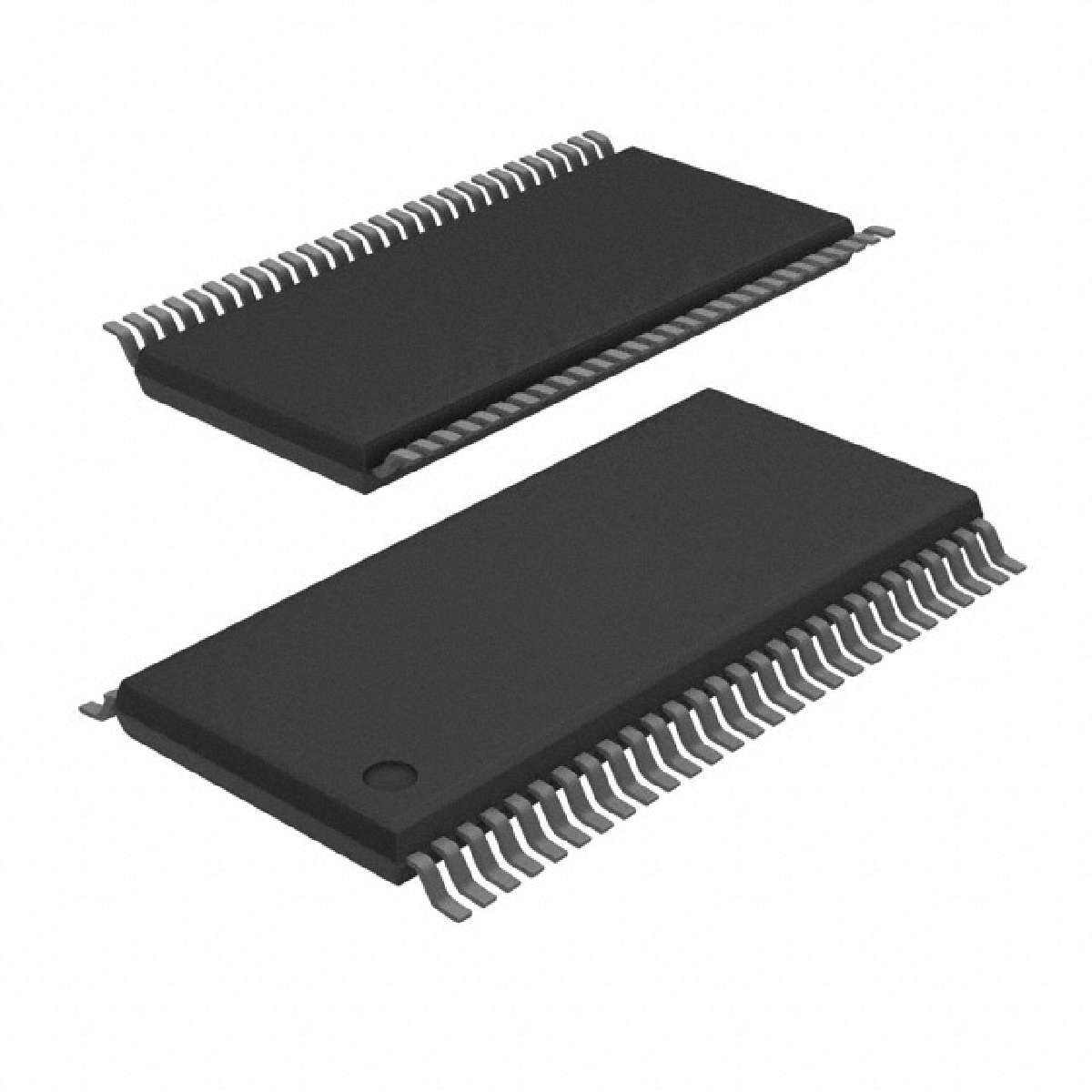

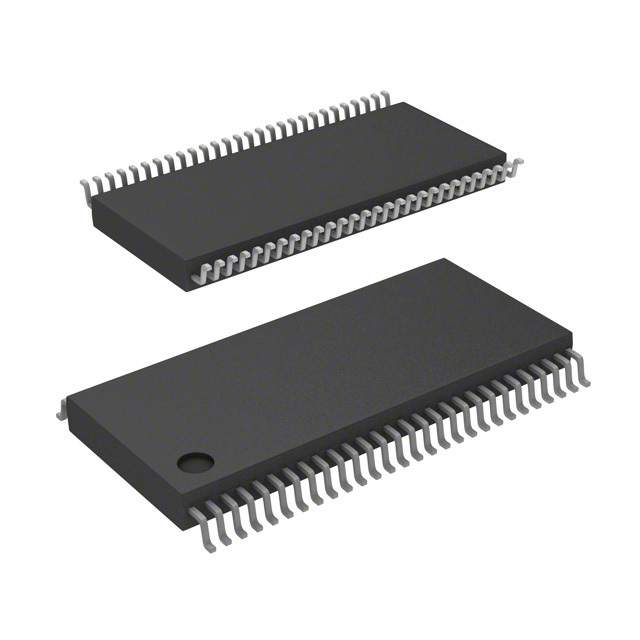

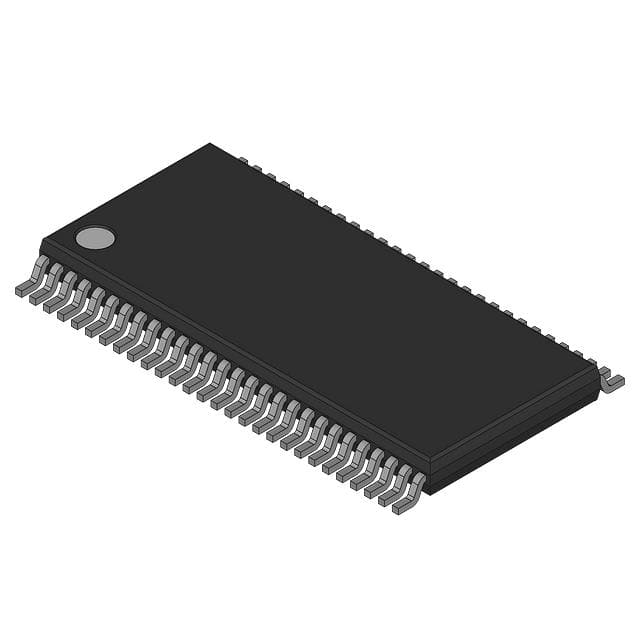

封装 TSSOP-56
长度 14 mm
宽度 6.1 mm
高度 1.15 mm
封装 TSSOP-56
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
