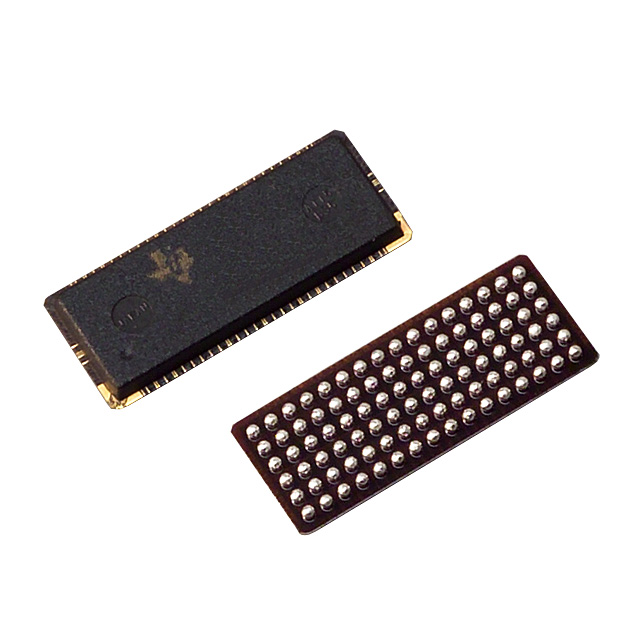

SN74LVC32374AZKER图片4
SN74LVC32374AZKER图片5
SN74LVC32374AZKER图片6

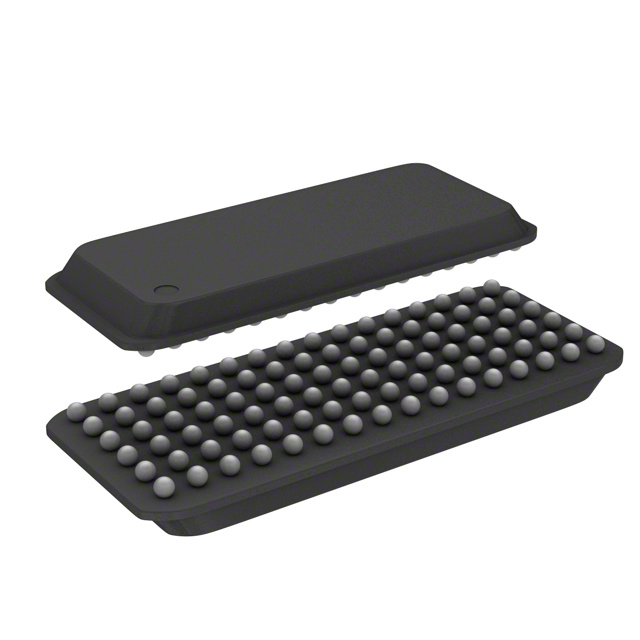

SN74LVC32374AZKER图片7
SN74LVC32374AZKER图片8
SN74LVC32374AZKER图片9
SN74LVC32374AZKER图片10
SN74LVC32374AZKER图片11
SN74LVC32374AZKER概述

32位边沿触发的D型触发器具有三态输出 32-BIT EDGE-TRIGGERED D-TYPE FLIP-FLOP WITH 3-STATE OUTPUTS

This 32-bit edge-triggered D-type flip-flop is designed for 1.65-V to 3.6-V VCC operation.

The SN74LVC32374A is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. It can be used as four 8-bit flip-flops, two 16-bit flip-flops, or one 32-bit flip-flop. On the positive transition of the clock CLK input, the Q outputs of the flip-flop take on the logic levels set up at the data D inputs.

A buffered output-enable OE\ input can be used to place the eight outputs in either a normal logic state high or low logic levels or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without interface or pullup components.

OE\ does not affect internal operations of the flip-flop. Old data can be retained or new data can be entered while the outputs are in the high-impedance state.

To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these devices as translators in a mixed 3.3-V/5-V system environment.

This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

SN74LVC32374AZKER中文资料参数规格
技术参数

电源电压DC 1.65V ~ 3.60V

输出接口数 8

电路数 32

通道数 32

时钟频率 150 MHz

位数 32

传送延迟时间 4.50 ns

静态电流 40.0 µA

输入电容 5 pF

输出电流驱动 -1.00 mA

输入数 8

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 1.65V ~ 3.6V

电源电压Max 3.6 V

电源电压Min 1.65 V

封装参数

安装方式 Surface Mount

引脚数 96

封装 BGA-96

外形尺寸

宽度 5.5 mm

高度 0.95 mm

封装 BGA-96

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

SN74LVC32374AZKER引脚图与封装图
SN74LVC32374AZKER引脚图
SN74LVC32374AZKER封装图
SN74LVC32374AZKER封装焊盘图
