18位总线接口触发器具有三态输出 18-BIT BUS-INTERFACE FLIP-FLOPS WITH 3-STATE OUTPUTS
description
These 18-bit flip-flops feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing wider buffer registers, I/O ports, bidirectional bus drivers with parity, and working registers.
● Members of the Texas Instruments Widebus Family
● State-of-the-Art EPIC-ΙΙB BiCMOS Design Significantly Reduces Power Dissipation
● High-Impedance State During Power Up and Power Down
● ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model C = 200 pF, R = 0
● Typical VOLP Output Ground Bounce < 1 V at VCC = 5 V, TA = 25°C
● Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise
● Flow-Through Architecture Optimizes PCB Layout
● High-Drive Outputs –32-mA IOH, 64-mA IOL
● Package Options Include Plastic 300-mil
Shrink Small-Outline DL, Thin Shrink
Small-Outline DGG Packages and 380-mil
Fine-Pitch Ceramic Flat WD Package
Using 25-mil Center-to-Center Spacings
频率 150 MHz
电源电压DC 4.50V ~ 5.50V
输出接口数 9
输出电流 64.0 mA
电路数 2
时钟频率 150 MHz
位数 18
传送延迟时间 6.80 ns
电压波节 5.00 V
静态电流 80 mA
输入电容 3.5 pF
输出电流驱动 -500 µA
输入数 9
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 56

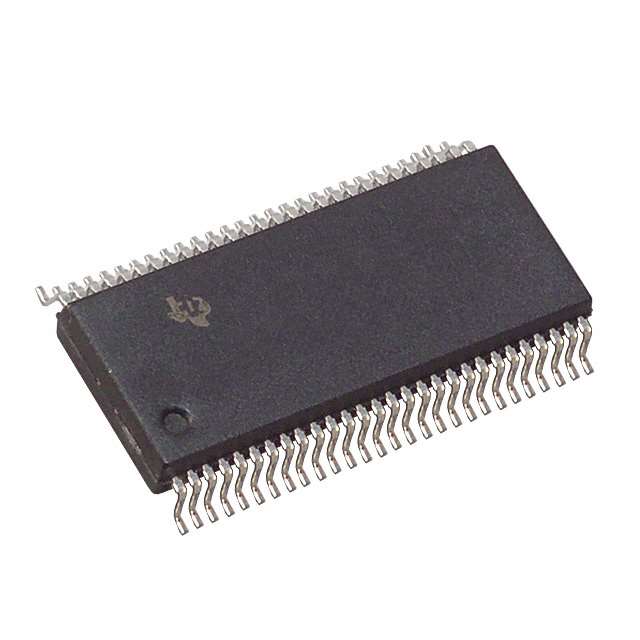

封装 SSOP-56
长度 18.41 mm
宽度 7.49 mm
高度 2.59 mm
封装 SSOP-56
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ABT16823DLG4 TI 德州仪器 | 当前型号 | 当前型号 |
SN74ABT16823DL 德州仪器 | 完全替代 | SN74ABT16823DLG4和SN74ABT16823DL的区别 |
SN74ABT16823DLR 德州仪器 | 类似代替 | SN74ABT16823DLG4和SN74ABT16823DLR的区别 |
SN74ABTH16823DLR 德州仪器 | 类似代替 | SN74ABT16823DLG4和SN74ABTH16823DLR的区别 |
