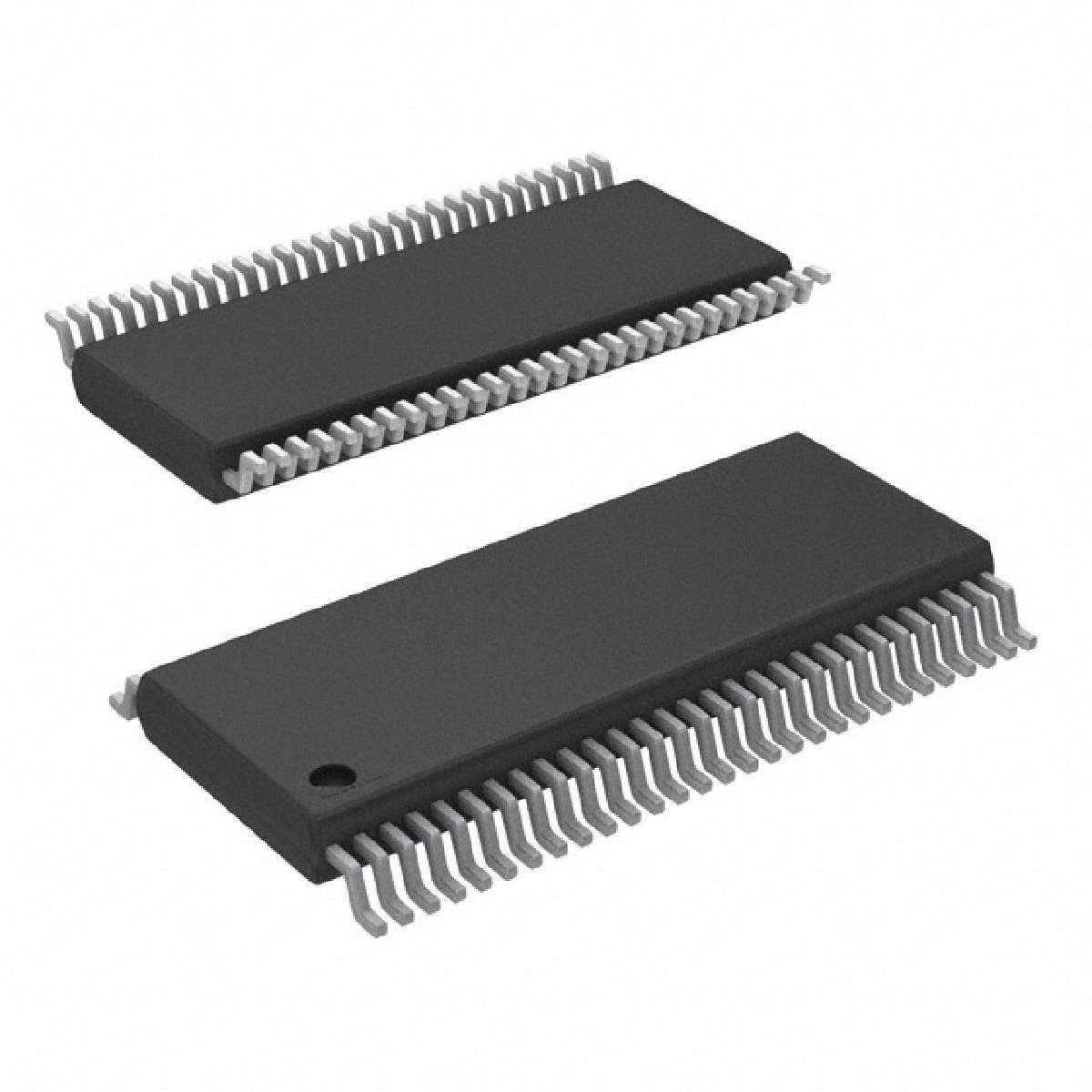

SN74ALVTH16821VR图片9
SN74ALVTH16821VR图片10

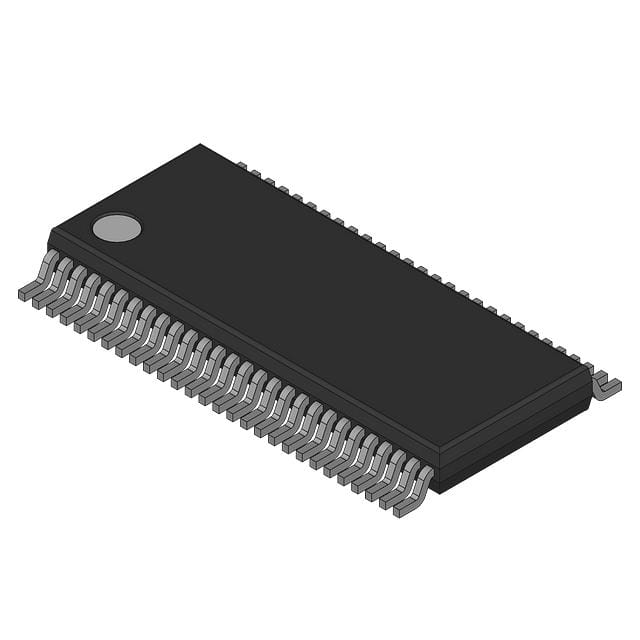

SN74ALVTH16821VR图片11
SN74ALVTH16821VR概述

具有三态输出的 2.5V/3.3V 20 位总线接口触发器 56-TVSOP -40 to 85

The "ALVTH16821 devices are 20-bit bus-interface flip-flops with 3-state outputs designed for 2.5-V or 3.3-V VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.

The devices can be used as two 10-bit flip-flops or one 20-bit flip-flop. The 20-bit flip-flops are edge-triggered D-type flip-flops. On the positive transition of the clock CLK, the flip-flops store the logic levels set up at the D inputs.

A buffered output-enable OE\\\\ input can be used to place the ten outputs in either a normal logic state high or low level or a high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without need for interface or pullup components.

OE\ does not affect the internal operation of the flip-flops. Old data can be retained or new data can be entered while the outputs are in the high-impedance state.

When VCC is between 0 and 1.2 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.2 V, OE\ should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.

The SN54ALVTH16821 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALVTH16821 is characterized for operation from -40°C to 85°C.

SN74ALVTH16821VR中文资料参数规格
技术参数

频率 150 MHz

电源电压DC 3.30 V, 3.60 V max

输出接口数 10

输出电流 64.0 mA

电路数 2

通道数 20

时钟频率 150 MHz

位数 20

极性 Non-Inverting

电压波节 3.30 V, 2.50 V

静态电流 3.2 mA

输入电容 3.5 pF

输入数 10

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压Max 3.6 V

电源电压Min 2.3 V

封装参数

安装方式 Surface Mount

引脚数 56

封装 TVSOP-56

外形尺寸

长度 11.3 mm

宽度 4.4 mm

高度 1.05 mm

封装 TVSOP-56

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

SN74ALVTH16821VR引脚图与封装图
SN74ALVTH16821VR引脚图
在线购买SN74ALVTH16821VR
型号: SN74ALVTH16821VR
制造商: TI 德州仪器
描述:具有三态输出的 2.5V/3.3V 20 位总线接口触发器 56-TVSOP -40 to 85
