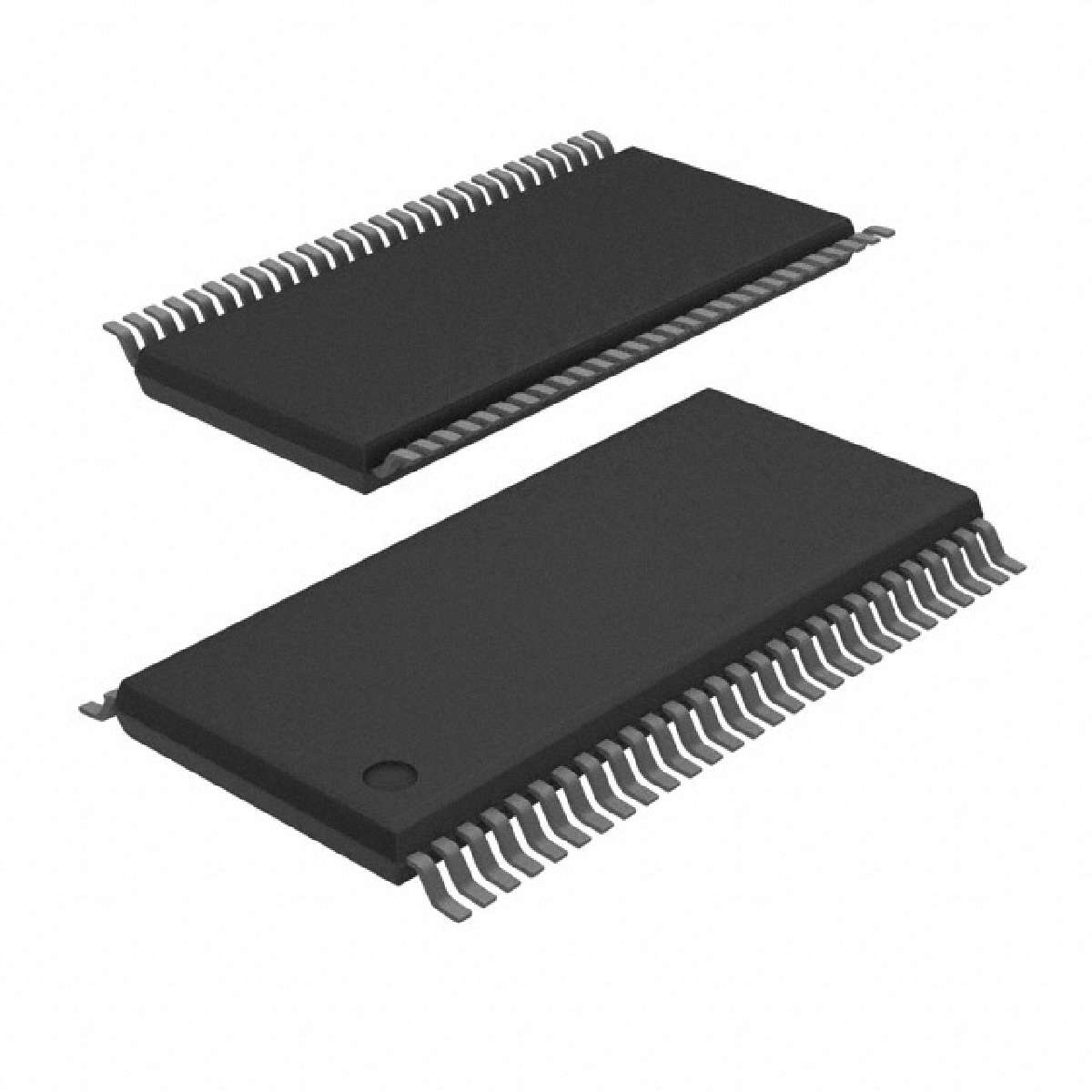

SN74ALVCH16820DGGR

具有双路输出和三态输出的 3.3V 10 位触发器 56-TSSOP -40 to 85

This 10-bit flip-flop is designed for 1.65-V to 3.6-V VCC operation.

The flip-flops of the SN74ALVCH16820 are edge-triggered D-type flip-flops. On the positive transition of the clock CLK input, the device provides true data at the Q outputs.

A buffered output-enable OE\ input can be used to place the ten outputs in either a normal logic state high or low logic level or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without need for interface or pullup components.

OE\ input does not affect the internal operation of the flip-flops. Old data can be retained or new data can be entered while the outputs are in the high-impedance state.

To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Active bus-hold circuitry is provided to hold unused or undriven inputs at a valid logic level. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended.
