3.3 V双LVTTL / LVCMOS到差分LVPECL缓冲器 3.3 V Dual LVTTL/LVCMOS to Differential LVPECL Buffer
If you are looking for a device to shift between voltage levels in your microprocessor-based circuit, then the level translator from Texas Instruments is for you. This level shifter has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging. This device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 3 V, while its maximum is 3.6 V.
电源电压DC 4.20V min
输出电流 50 mA
电路数 1
通道数 2
位数 2
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
输出通道数 1
电源电压 3V ~ 3.6V
电源电压Max 5.7 V
电源电压Min 4.2 V
安装方式 Surface Mount
引脚数 8

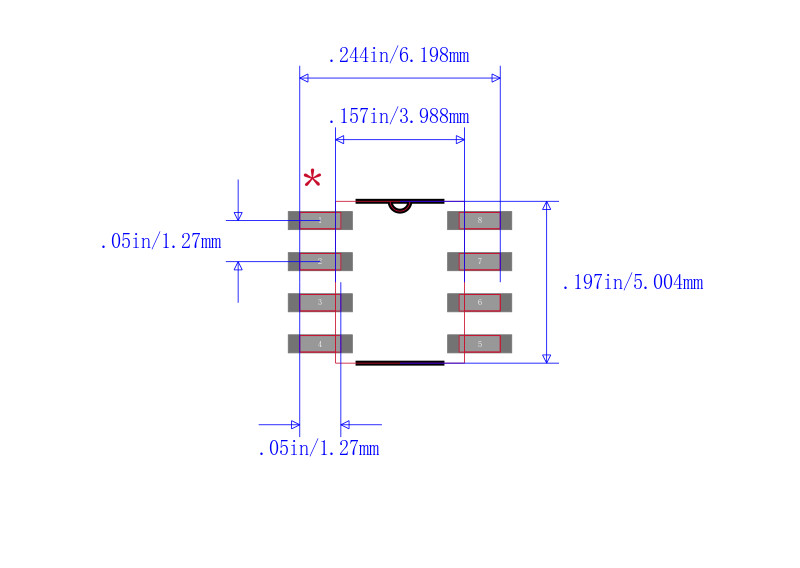

封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 5A991.b.1
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN65EPT22D TI 德州仪器 | 当前型号 | 当前型号 |
SN65EPT22DR 德州仪器 | 类似代替 | SN65EPT22D和SN65EPT22DR的区别 |
MC100EPT22DG 安森美 | 功能相似 | SN65EPT22D和MC100EPT22DG的区别 |
MC100EPT22DR2G 安森美 | 功能相似 | SN65EPT22D和MC100EPT22DR2G的区别 |
