SNJ54S05J

六路反向器与集电极开路输出 HEX INVERTERS WITH OPEN-COLLECTOR OUTPUTS

description/ordering information

These devices contain six independent inverters. To perform correctly, the open-collector outputs require pullup resistors. These devices may be connected to other open-collector outputs to implement active-low wired-OR or active-high wire-AND functions. Open-collector devices often are used to generate high VOH levels.

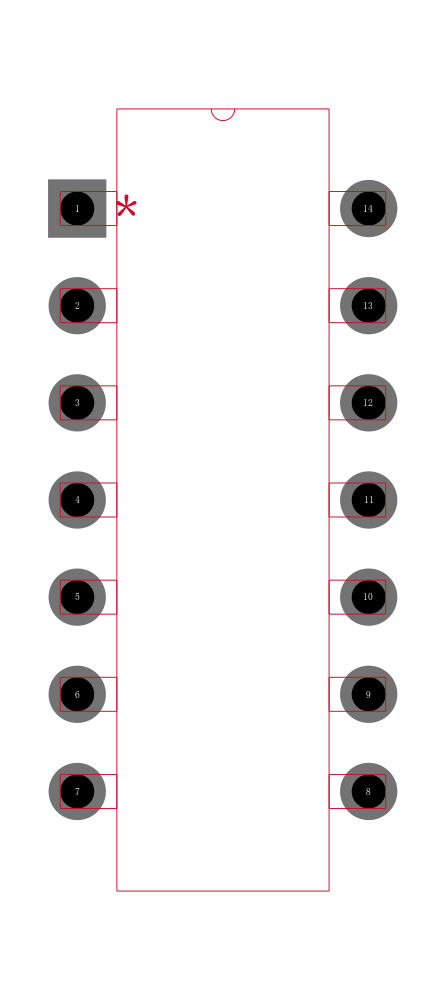

• Package Options Include Plastic Small-Outline D, NS, Shrink Small-Outline DB, and Ceramic Flat W Packages, Ceramic Chip Carriers FK, and Standard Plastic N and Ceramic J DIPs

• Dependable Texas Instrument Quality and Reliability
