SML-LX3939UWC-TR

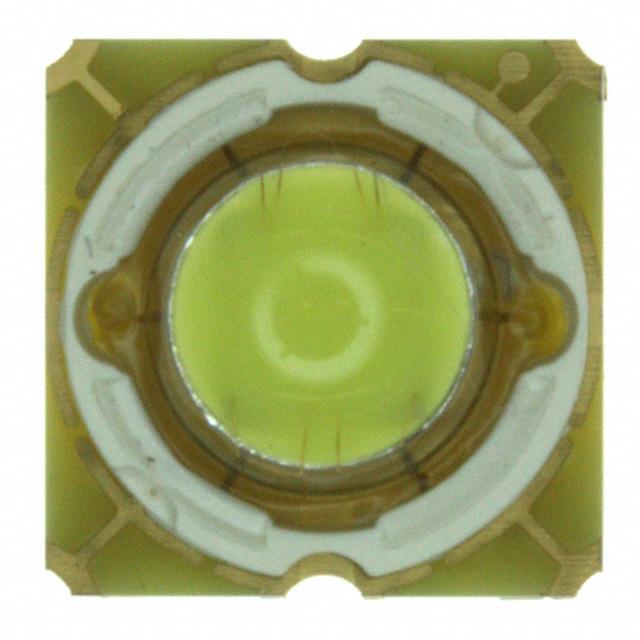

SML-LX3939UWC-TR图片1
SML-LX3939UWC-TR图片2
SML-LX3939UWC-TR图片3

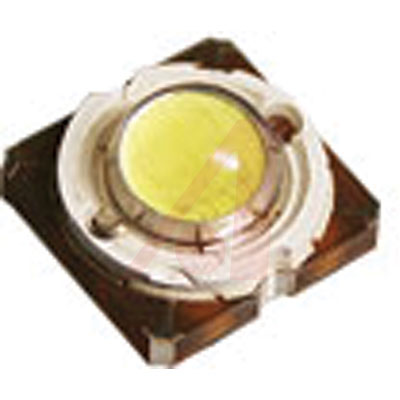

SML-LX3939UWC-TR图片4
SML-LX3939UWC-TR图片5
SML-LX3939UWC-TR图片6
SML-LX3939UWC-TR概述

Lumex 6-SMD 白色 LED, 贴装

The range of high power s have been professionally designed to combine SMT convenience with through-hole T-5 mm LED size features. The economical and highly reliable series of LEDs and accessories features High Brightness Chip Technology and is available in a wide range of colours and lens finishes.

**Features:**

* High Brightness Chip Technology

* Wide range of colours and lens finishes

* Easy installation

SML-LX3939UWC-TR中文资料参数规格
技术参数

正向电压 7.3 V

发光强度 190 mcd

视角 130°

测试电流 350 mA

工作温度Max 80 ℃

工作温度Min -40 ℃

封装参数

安装方式 Surface Mount

封装 SMD-6

外形尺寸

长度 10.1 mm

宽度 10.1 mm

高度 5.4 mm

封装 SMD-6

物理参数

颜色 White

其他

产品生命周期 Active

包装方式 Cut Tape CT

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买SML-LX3939UWC-TR
型号: SML-LX3939UWC-TR
制造商: Lumex 鲁美科思
描述:Lumex 6-SMD 白色 LED, 贴装
