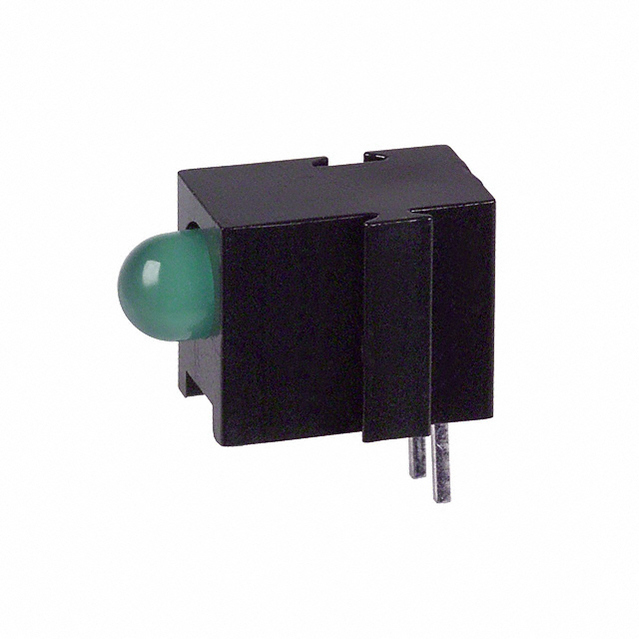

LED 3MM RA MATING GREEN PC MNT
LED Circuit Board Indicator Single Green Diffused, Tinted 2.2V 20mA Through Hole, Right Angle
得捷:
LED 3MM RA MATING GREEN PC MNT
贸泽:
LED Circuit Board Indicators LED CBI
艾睿:
LED Uni-Color Green 565nm 2-Pin
Electro Sonic:
LED Uni-Color Green 565nm 2-Pin
Win Source:
LED 3MM RA MATING GREEN PC MNT / LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 2.2V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
正向电压 2.20 V
波长 565 nm
发光强度 50 mcd
视角 60°
透镜样式 Diffused
峰值波长 565 nm
测试电流 20 mA
正向电流 100 µA
正向电压Max 2.6 V
正向电流Max 25 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 105 mW
额定电压 2.2 V
安装方式 Through Hole
引脚数 2
宽度 5.08 mm
直径 3.00 mm
颜色 Green
外观颜色 Green
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
