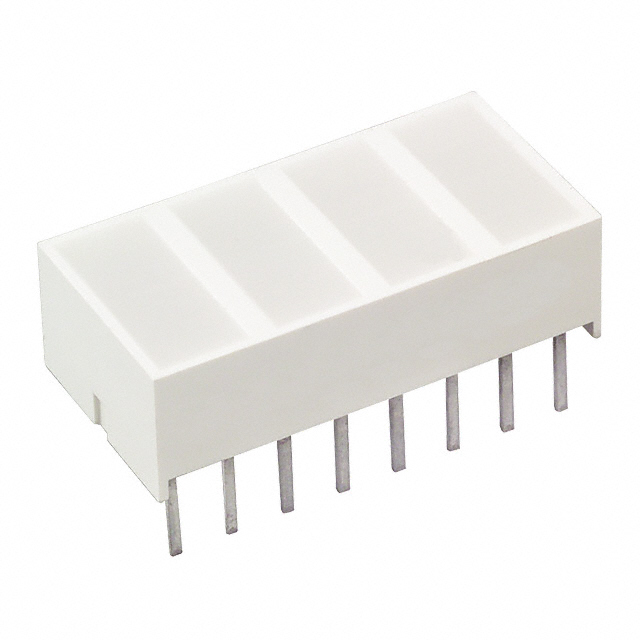

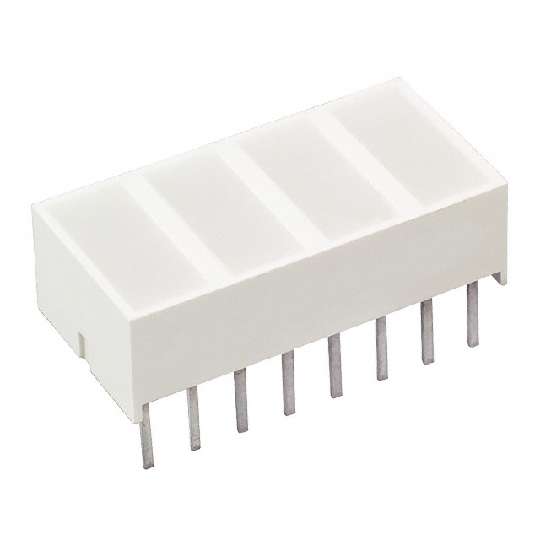

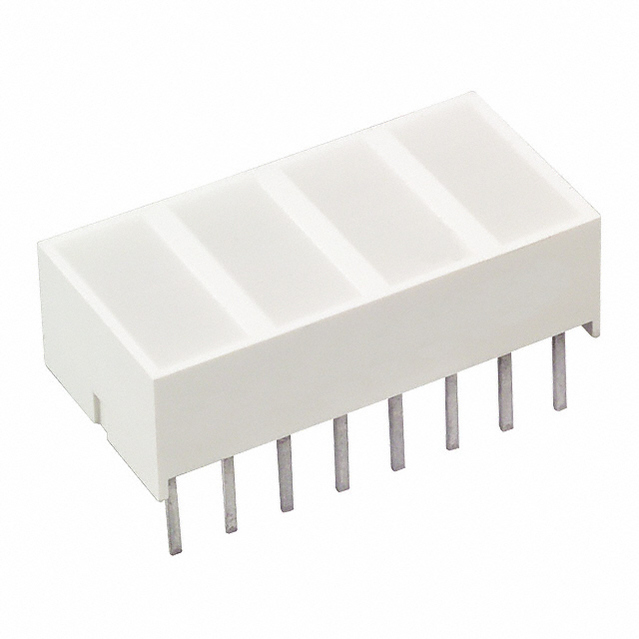

LED Uni-Color Red 635nm 16Pin
LED 电路板指示器 LED Circuit Board Indicator 灯条 - 4 灯,宽,DIP 红色(x 4) 散射,白色 2.1V 30mA 矩形,带平顶 - 通孔
得捷:
LED LTBAR 4WINDOW 8CHIP RED DIFF
贸泽:
LED Bars and Arrays 10x20mm 4 Window Red
艾睿:
Uni-Color LED Light Bar Red 635nm 16-Pin
Verical:
Uni-Color LED Light Bar Red 635nm 16-Pin
AMEYA360:
LED LTBAR 4WINDOW 8CHIP RED DIFF
Electro Sonic:
Uni-Color LED Light Bar Red 635nm 16-Pin
Win Source:
LED LTBAR 4WINDOW 8CHIP RED DIFF / LED Circuit Board Indicator LED Circuit Board Indicator Bar - 4 Wide, DIP Red x 4 Diffused, White 2.1V 30mA Rectangle with Flat Top Through Hole
触点数 16
额定功率 105 mW
正向电压 2.1 V
波长 635 nm
发光强度 25 mcd
视角 160°
透镜样式 Diffused
峰值波长 635 nm
高度尺寸特征 10.0 mm
测试电流 20 mA
正向电流 20 mA
正向电压Max 2.8 V
正向电流Max 20 mA
额定电压 2.1 V
安装方式 Through Hole
引脚数 16
长度 20.04 mm
宽度 9.94 mm
高度 6.1 mm
颜色 Red
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
