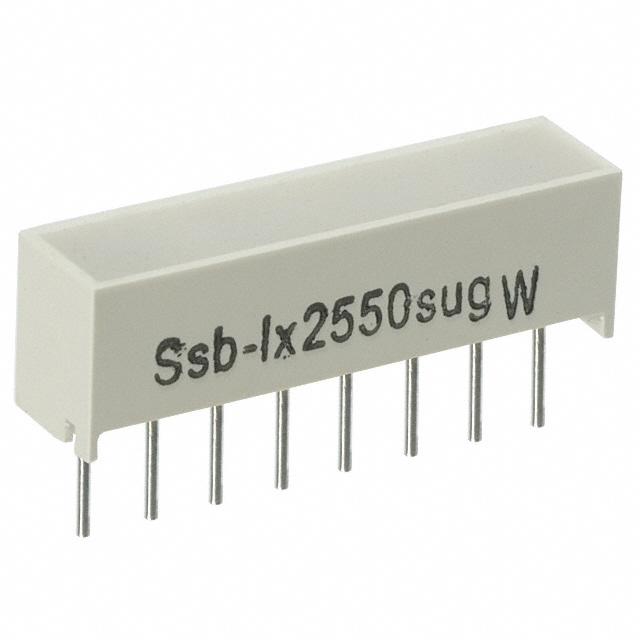

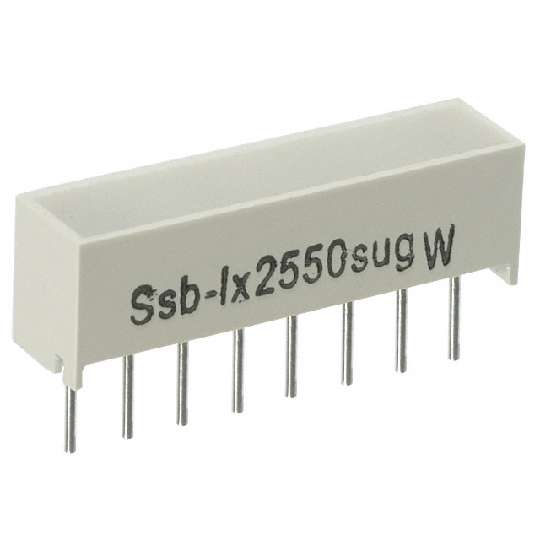

LED array Green L x W x H 20.04 x 10.1 x 4.86mm LUMEX
LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Green Diffused, White 2.2V 25mA - - Through Hole
得捷:
LED BAR 5X20MM 574NM GRN DIFF
艾睿:
Uni-Color LED Light Bar Green 574nm 8-Pin
Verical:
Uni-Color LED Light Bar Green 574nm 8-Pin
Win Source:
LED BAR 5X20MM 574NM GRN DIFF / LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Green Diffused, White 2.2V 25mA Through Hole
正向电压 2.6 V
波长 574 nm
发光强度 150 mcd
视角 160°
透镜样式 Diffused
峰值波长 574 nm
耗散功率 105 W
测试电流 20 mA
正向电流 25 mA
正向电压Max 2.6 V
正向电流Max 25 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 105 mW
额定电压 2.2 V
安装方式 Through Hole
引脚数 8
引脚间距 2.54 mm
长度 20.04 mm
宽度 4.86 mm
高度 6.1 mm
脚长度 4.00 mm
引脚间距 2.54 mm
颜色 Green
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
