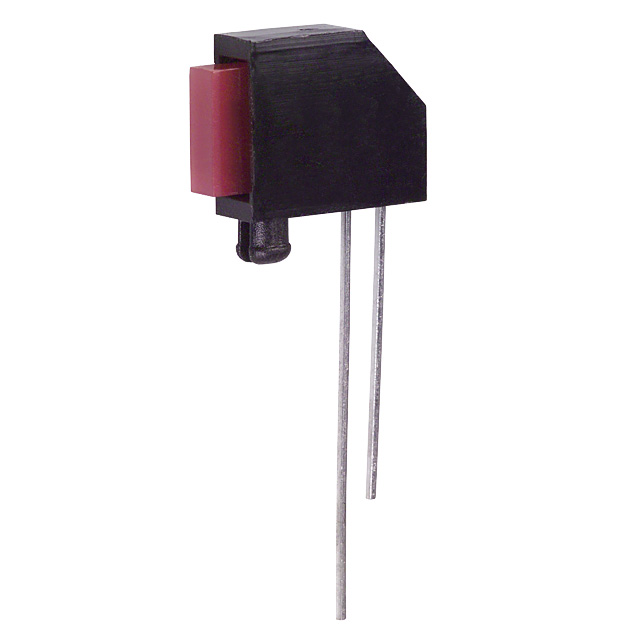

LED 电路板指示器 2.5x7 Rectagular Red
LED Circuit Board Indicator Bar - Single, SIP Red Diffused, Tinted 2V 20mA Through Hole, Right Angle
得捷:
LED 2.5X7MM RECT RA RED DIFFPCMT
贸泽:
LED 电路板指示器 2.5x7 Rectagular Red
艾睿:
LED Uni-Color Red 635nm 2-Pin
正向电压 2.00 V
波长 635 nm
发光强度 15.0 mcd
视角 110°
透镜样式 Diffused
峰值波长 635 nm
测试电流 20 mA
正向电压Max 2.5 V
正向电流Max 30 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 105 mW
额定电压 2 V
安装方式 Through Hole
引脚数 2
长度 13.9 mm
宽度 3.6 mm
高度 10.16 mm
颜色 Red
外观颜色 Red
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
