SPC5644AF0MVZ1

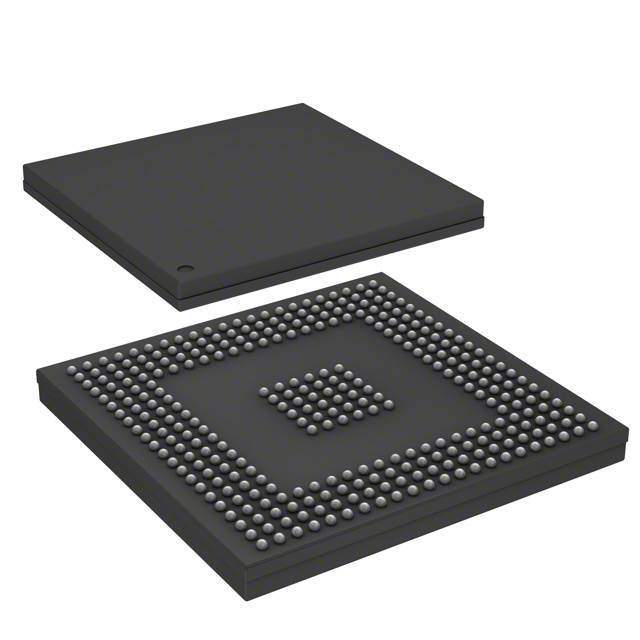

NXP  SPC5644AF0MVZ1  芯片, 微控制器, 32位, QORIVVA, 324 TEPBGA

Overview

The MPC564xA family of MCUs offers enhanced powertrain functionality and addresses the harsh environments of mid-range gasoline and direct injection engines, advanced transmissions, and industrial applications.

* Designed to help lower overall system costs

* Offers higher performance than single-issue cores at the same frequency

* Operates at low power for high-temperature environments, such as transmissions

* Enables precision tuning to optimize fuel economy and reduce emissions

* Improves shift control

MoreLess

## Features

* Up to 150 MHz Power Architecture® core with up to two instructions per cycle

* Up to 4 MB of on-chip flash memory with error correcting codes ECC and read while write RWW options

* Up to 192 KB on-chip RAM with standby functionality 32 KB and ECC

* 8 KB instruction cache with line locking, configurable as two- or four-way

* 3× eSCI, 3× DSPI with microsecond bus support and a reaction module

* 3× FlexCAN with 64 messages buffers, 1× FlexRayTM module v2.1

* 32-channel eTPU2 second generation eTPU and 24 unified eMIOS channels

* Up to 40 channels ADC Dual ADC with 670 ns conversion time

* 5-volt single supply with external ballast with multiple external supply: 5V, 3.3V and 1.2V

* Power reduction modes: slow, stop and stand-by modes

* This product is included in ®.s product longevity program, with assured supply for a minimum of 15 years after launch

* Ultra-Reliable MCUs

## Features Comparison Table

### Family Comparison

| MPC5643A| MPC5642A| MPC5644A

|

|

|

|

|

|

|

|

|

|

|

|

|

|

|

|

@VR V @ 1MHz|

|

|

|

|

|

|

|

|
