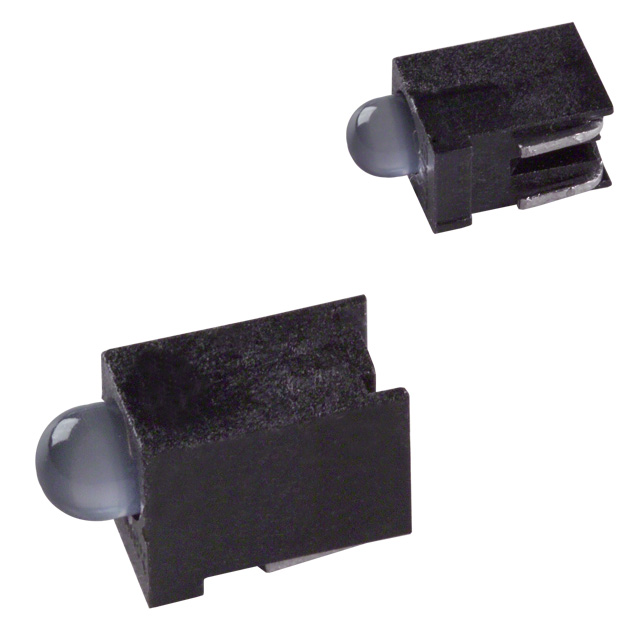

3 mm 60° 80 mcd 3.5 V 漫射 直角 LED 指示灯 - T-1
LED Circuit Board Indicator LED Circuit Board Indicator Single Blue Diffused, Tinted 3.5V 20mA Round with Domed Top 3mm, T-1 Surface Mount, Right Angle
得捷:
LED INGAN BLUE DIFF 470NM SMD
艾睿:
LED Uni-Color Blue 470nm 2-Pin SMD T/R
Verical:
LED Uni-Color Blue 470nm 2-Pin SMD T/R
AMEYA360:
LED INGAN BLUE DIFF 470NM SMD
Win Source:
LED INGAN BLUE DIFF 470NM SMD / LED Circuit Board Indicator LED Circuit Board Indicator Single Blue Diffused, Tinted 3.5V 20mA Round with Domed Top 3mm, T-1 Surface Mount, Right Angle
正向电压 3.5 V
波长 470 nm
发光强度 80 mcd
视角 60°
透镜样式 Diffused
峰值波长 470 nm
耗散功率 98 W
测试电流 20 mA
正向电流 30 mA
正向电压Max 4 V
正向电流Max 30 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 98 mW
额定电压 3.5 V
安装方式 Surface Mount
引脚数 2
封装 SMD-1
高度 5.5 mm
直径 3.00 mm
封装 SMD-1
颜色 Blue
外观颜色 Blue
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
