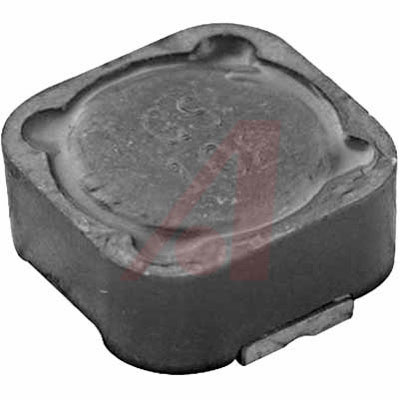

Inductor; Filter; Ind 18uH; Tol 20%; Cur 3.9A; SMT; DCR 0.052Ω

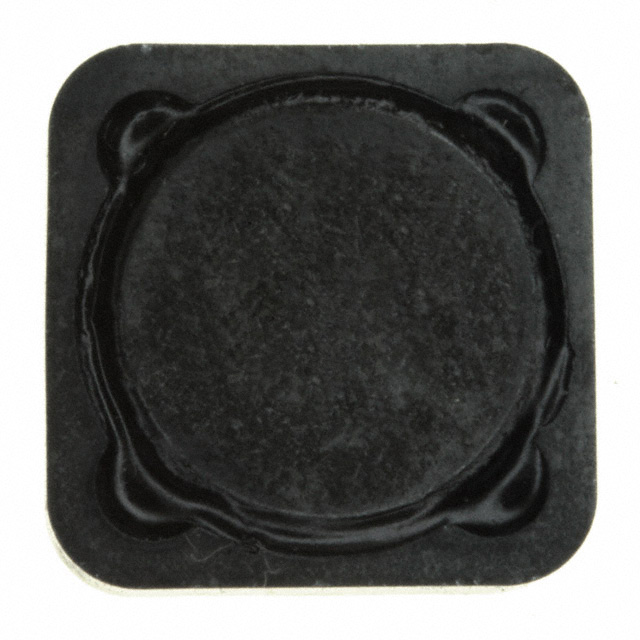

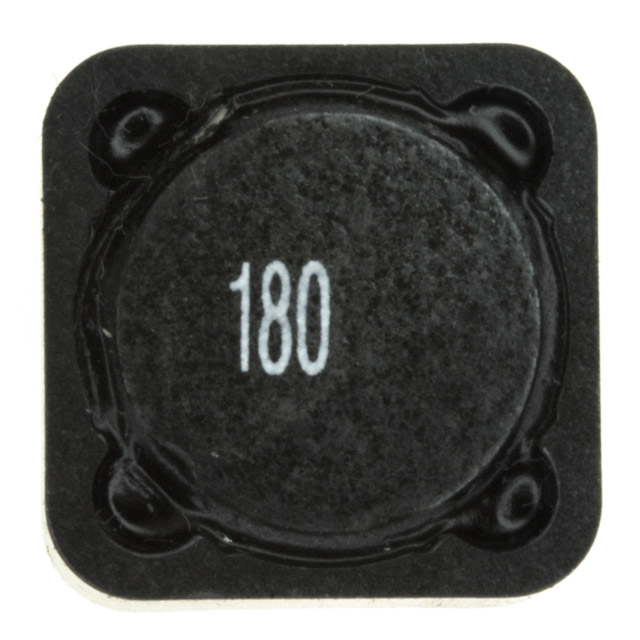

Shielded Surface Mounted Inductors
Units designed for surface mounting, ferrite core and ferrite sleeve
得捷:
FIXED IND 18UH 3.9A 52 MOHM SMD
Allied Electronics:
Inductor; Filter; Ind 18uH; Tol 20%; Cur 3.9A; SMT; DCR 0.052 Ohms
额定电流 3.9 A
容差 ±20 %
电感 18 μH
屏蔽 Yes
测试频率 1 kHz
电阻DC) ≤52 mΩ
工作温度Max 125 ℃
安装方式 Surface Mount
封装 0.472" L x 0.472" W x 0.315" H 12.00mm x 12.00mm x 8.00mm
长度 12.0 mm
宽度 12.0 mm
高度 8.00 mm
封装 0.472" L x 0.472" W x 0.315" H 12.00mm x 12.00mm x 8.00mm
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
