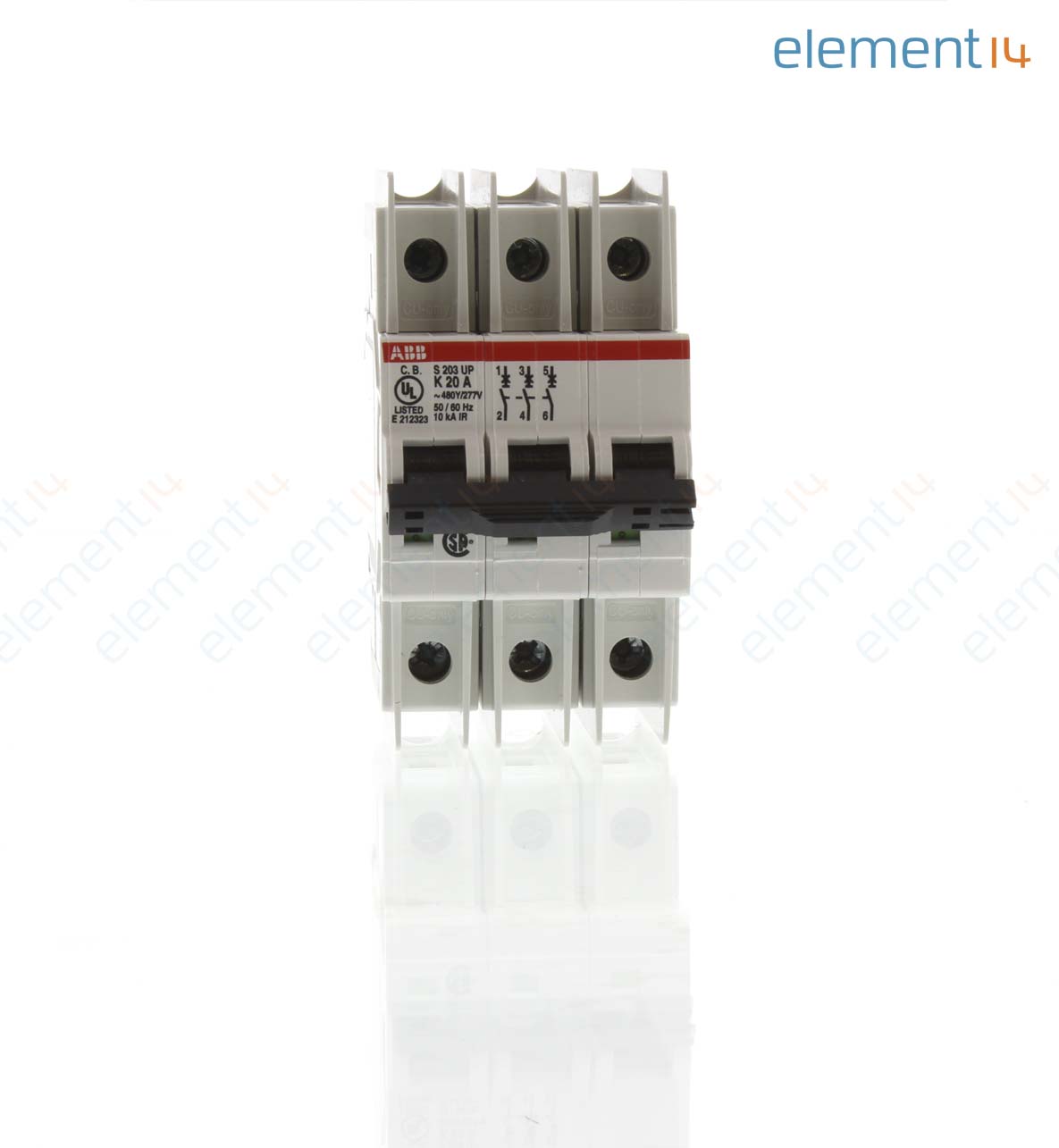

S203UP-K20图片1

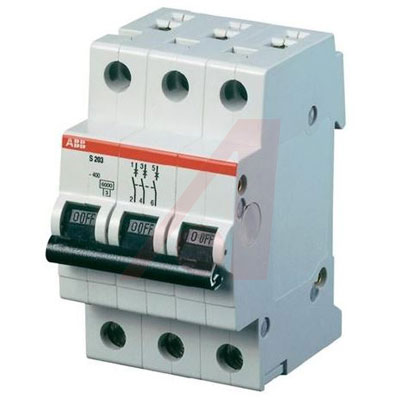

S203UP-K20图片2
S203UP-K20图片3
S203UP-K20图片4
S203UP-K20图片5
S203UP-K20图片6
S203UP-K20图片7
S203UP-K20图片8
S203UP-K20图片9
S203UP-K20概述

Circuit Breaker, 3P, 20A/277VAC, K, 480Y/277VAC, UL489 Listed, 10KAIC, DIN Mount

All Minarature Circuit Breakers MCBs of the product range S200U are current limiting with two tripping mechanisms delayed thermal and electromechanic. They are available in different characteristics K, Z, configurations 1P, 2P, 3P, 4P, breaking capacities up to 10 kA and rated currents up to 63 A. For the worldwide market, the breakers comply with IEC/EN 60947-2, UL 489 and CSA 22.2 No. 5, allowing the use for commercial and industrial applications. Maximum Operating Voltage UL/CSA: 240 VAC.

S203UP-K20中文资料参数规格
技术参数

额定电压DC 125 V

额定电压AC 277 V

额定电流 20 A

额定电压 277VAC, 480VAC

封装参数

安装方式 DIN Rail

物理参数

工作温度 -25℃ ~ 55℃

符合标准

RoHS标准 Non-Compliant

数据手册

在线购买S203UP-K20
型号: S203UP-K20
制造商: ABB
描述:Circuit Breaker, 3P, 20A/277VAC, K, 480Y/277VAC, UL489 Listed, 10KAIC, DIN Mount
