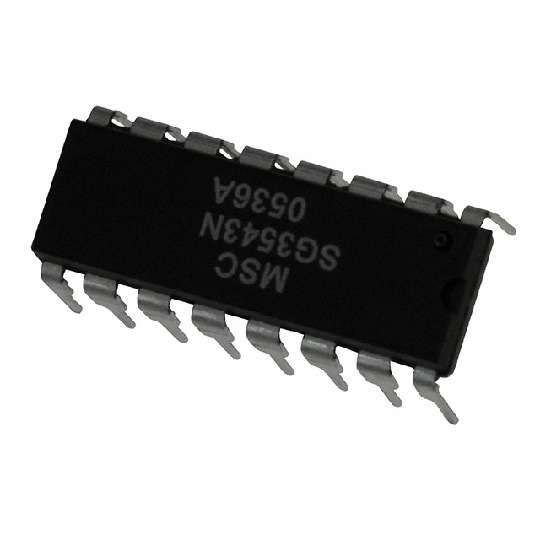

SG3543N

电源输出监控电路 POWER SUPPLY OUTPUT SUPERVISORY CIRCUIT

DESCRIPTION

This monolithic integrated circuit contains all the functions necessary to monitor and control the output of a sophisticated power supply system. Over-voltage O.V. sensing with provision to trigger an external SCR “crowbar” shutdown; an under-voltage U.V. circuit which can be used to monitor either the output or to sample the input line voltage; and a third op amp/comparator usable for current sensing C.L. are all included in this IC, together with an independent, accurate reference generator.

FEATURES

• Over-voltage, under-voltage, and current sensing circuits all included

• Reference voltage trimmed to 1% accuracy

• SCR "Crowbar" drive of 300mA

• Programmable time delays

• Open-collector outputs and remote activation capability

• Total standby current less than 10mA

HIGH RELIABILITY FEATURES - SG1543

♦ Available to MIL-STD-883 and DESC SMD

♦ LMI level "S" processing avail able
