SFH6106-1

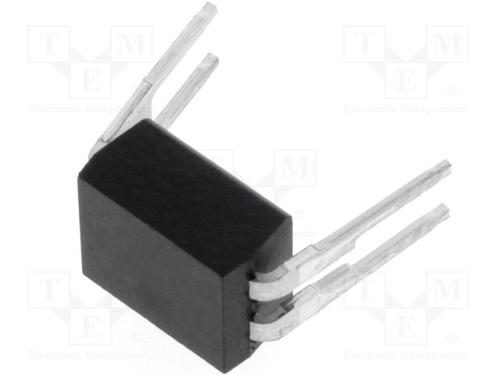

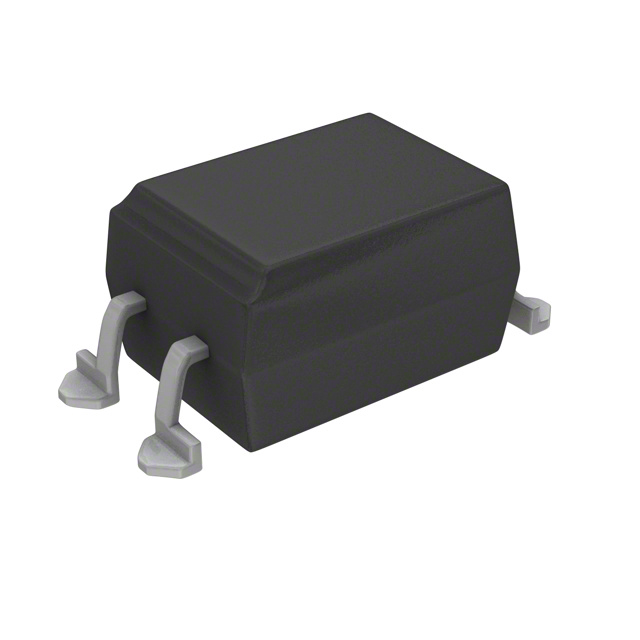

VISHAY  SFH6106-1  光电耦合器, 晶体管输出, 1通道, 表面安装DIP, 4 引脚, 60 mA, 5.3 kV, 40 %

The is a High Reliability Phototransistor Output Optocoupler features a high current transfer ratio, low coupling capacitance and high isolation voltage. This coupler has a GaAs infrared diode emitter, which is optically coupled to a silicon planar phototransistor detector. The coupling device is designed for signal transmission between two electrically separated circuits. This version complies with IEC 60950 DIN VDE 0805 for reinforced insulation up to an operation voltage of 400Vrms or DC.

.

Good CTR linearity depending on forward current

.

Low saturation voltage

.

Fast switching times

.

Low CTR degradation

.

Temperature stable

.

Low coupling capacitance

.

High common mode interference immunity
