SSM-110-L-SH

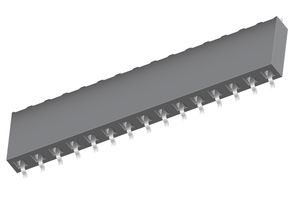

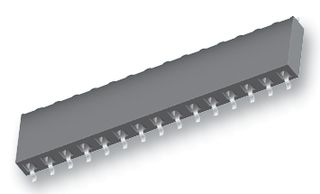

SAMTEC  SSM-110-L-SH  板至板连接, 水平, SSM系列, 10 触点, 插座, 2.54 mm, 表面安装　, 1 排

SMT 2.54mm Square Box Socket Strip - SSM Series

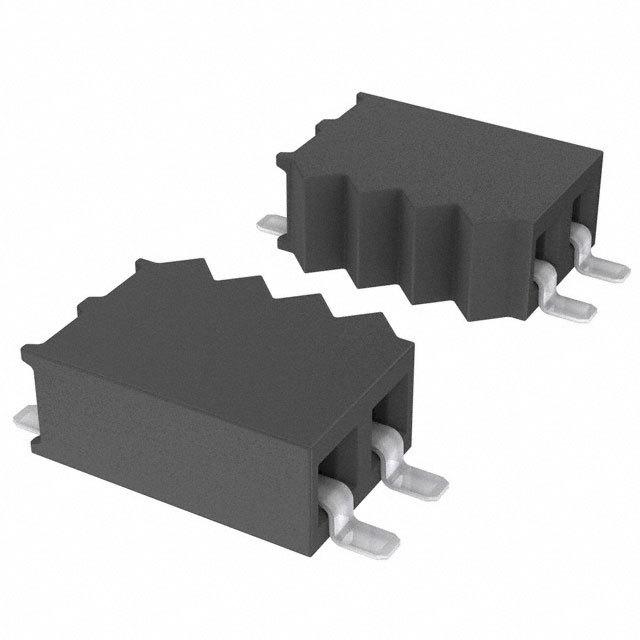

SSM series board to board PCB surface mount box style socket strips with a 2.54mm pitch available in single or double row configurations and vertical or horizontal body orientation. The body of these SSM series board-to-board SMT box socket strips is made from black liquid crystal polymer and the contacts are made from phosphor bronze with a 0.25μm gold plating on the contact and matte tin on the tail. The temperature range at which these PCB board to board socket strips can be used is -55 to +125°C.

Part numbers SSM-XXX-X SH are single row, horizontal mount.

Part numbers SSM-XXX-X SV are single row, vertical mount.

Part numbers SSM-XXX-X DH are double row, horizontal mount.

Part numbers SSM-XXX-X DV are double row, vertical mount.

### 注

These SSM series board to board SMT box style socket strips will mate with the following:

TSW series through hole square post headers - stock number 767-0849 typically.

TSM series SMT square post headers - stock number 765-6458 typically.

TLW series low profile square headers - stock number 765-6127 typically.
