EXAR SP691AET-L 监控器电路, 低功耗, 高电平有效, 低电平有效复位, 4.75V-5.5V输入, WSOIC-16
By using this microprocessor supervisory circuit from EXAR you won"t have to worry if something happens to your main processor. This device has a maximum power dissipation of 900 mW. Its maximum power dissipation is 900 mW. It has a typical reset threshold voltage of 4.65 V, with a minimum of 4.5 V and a maximum of 4.75 V. This device has a minimum operating supply voltage of 0 V and a maximum of 5.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 4.75V min
供电电流 35.0 µA
针脚数 16
耗散功率 900 mW
阈值电压 4.65 V
跌落电压 4.65 V
复位电压Min 4.5 V
复位电压Max 4.75 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 900 mW
电源电压Max 5.5 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 16

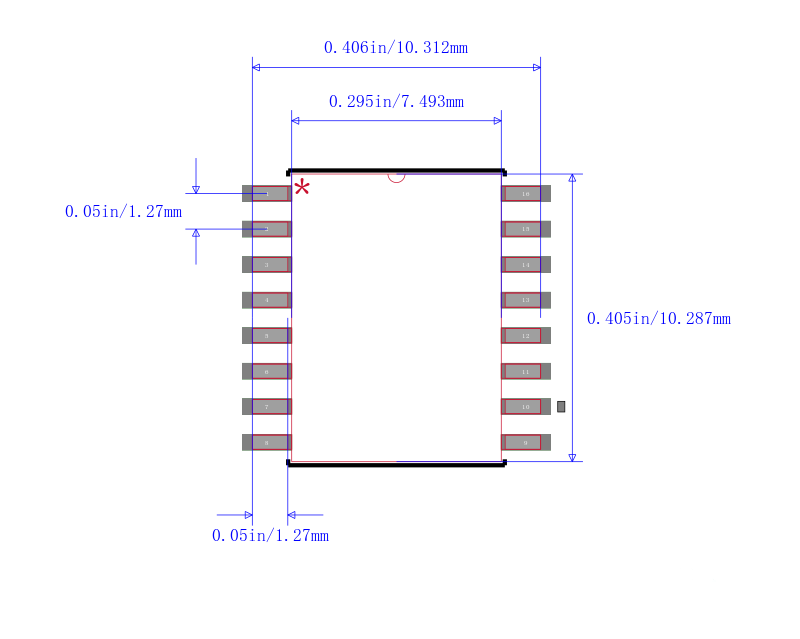

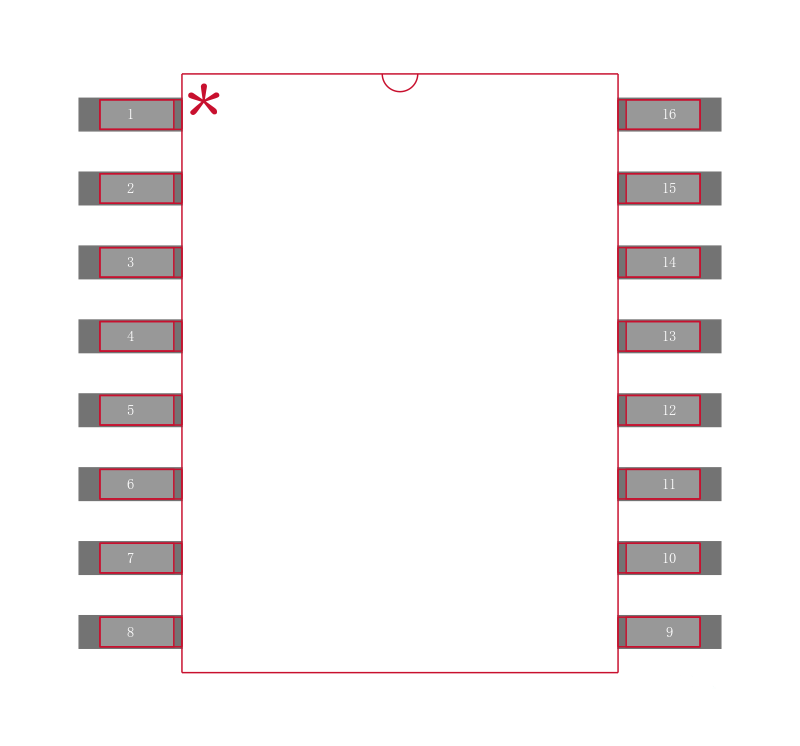

封装 SOIC-16
高度 2.55 mm
封装 SOIC-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Discontinued at Digi-Key
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SP691AET-L Exar Corporation 艾科嘉 | 当前型号 | 当前型号 |
SP691AEP-L 艾科嘉 | 类似代替 | SP691AET-L和SP691AEP-L的区别 |
ADM691AARWZ 亚德诺 | 功能相似 | SP691AET-L和ADM691AARWZ的区别 |
MAX691AEPE+ 美信 | 功能相似 | SP691AET-L和MAX691AEPE+的区别 |
