SDS120PS24B-C

XP POWER  SDS120PS24B-C  封闭式电源 交流/直流, 固定输出, 90 V, 260 V, 120 W, 24 V, 5 A

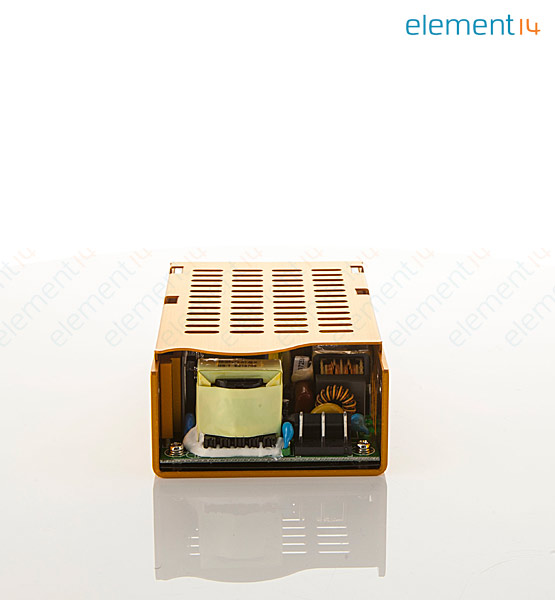

The is an AC/DC enclosed Power Supply with cover.

.

Convection cooled

.

Up to 90% efficiency

.

Internal T3.15 A /250VAC fuse in line input protection

.

1.7/1A at 115/230VAC Maximum input current

.

20/51A at 115/230VAC Maximum inrush current

.

0.30/0.75mA at 115/230VAC Earth leakage current

.

80% Typical efficiency

.

100 PFC and 67kHz PWM Typical switching frequency

.

>0.9 Power factor

.

±0.04%/°C Temperature coefficient

.

2% Tolerance
