SP900S-0.009-00-43概述

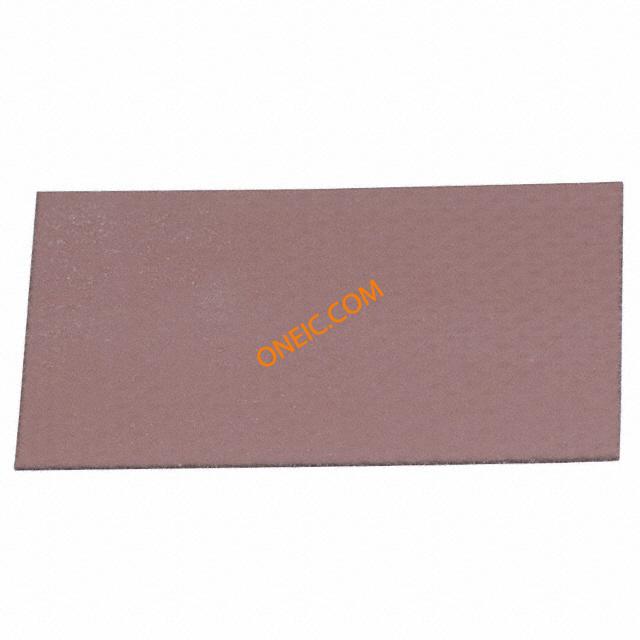

BERGQUIST  SP900S-0.009-00-43  热绝缘, Sil-垫 900S, .009", TO-220, 10只, 玻璃纤维, 1.6 W/m.K, 5.5 kV, 0.229 mm, 10 ohm-m, 0.95 °C/W

The is a 0.009 x 4 x 3-inch no adhesive Sil-Pad® high performance thermally conductive Insulation Material which is designed for a wide variety of applications requiring high thermal performance and electrical isolation. These applications also typically have low mounting pressures for component clamping. Sil-Pad 900S material combines a smooth and highly compliant surface characteristic with high thermal conductivity. These features optimize the thermal resistance properties at low pressures. Applications requiring low component clamping forces include discrete semiconductors TO-220,TO-247 and TO-218 mounted with spring clips. Spring clips assist with quick assembly and apply a limited amount of force to the semiconductor. The smooth surface texture of Sil-Pad 900S minimizes interfacial thermal resistance and maximizes thermal performance.

.
UL94V-0 Flammability rating
.
Electrically isolating
.
Low mounting pressures
.
Smooth and highly compliant surface
.
General-purpose thermal interface material solution
.
-60 to 180°C Temperature range
SP900S-0.009-00-43中文资料参数规格
技术参数

击穿电压 5.5 kVAC

热阻 0.61 ℃/W

击穿电压 5.5 kV

封装参数

封装 TO-218

外形尺寸

长度 0.75 in

宽度 0.5 in

封装 TO-218

厚度 0.229 mm

物理参数

颜色 Pink

工作温度 -60℃ ~ 180℃

其他

产品生命周期 Active

制造应用 Safety, Automotive, 工业, Industrial, 安全, 车用

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

在线购买SP900S-0.009-00-43
型号: SP900S-0.009-00-43
制造商: Bergquist
描述:BERGQUIST  SP900S-0.009-00-43  热绝缘, Sil-垫 900S, .009", TO-220, 10只, 玻璃纤维, 1.6 W/m.K, 5.5 kV, 0.229 mm, 10 ohm-m, 0.95 °C/W
替代型号SP900S-0.009-00-43
型号/品牌 代替类型 替代型号对比

SP900S-0.009-00-43

Bergquist

当前型号

当前型号

SP600-43

Bergquist

功能相似

SP900S-0.009-00-43和SP600-43的区别
