晶体管输出光电耦合器 Phototransistor Out AC-In CTR>100-320%
DESCRIPTION

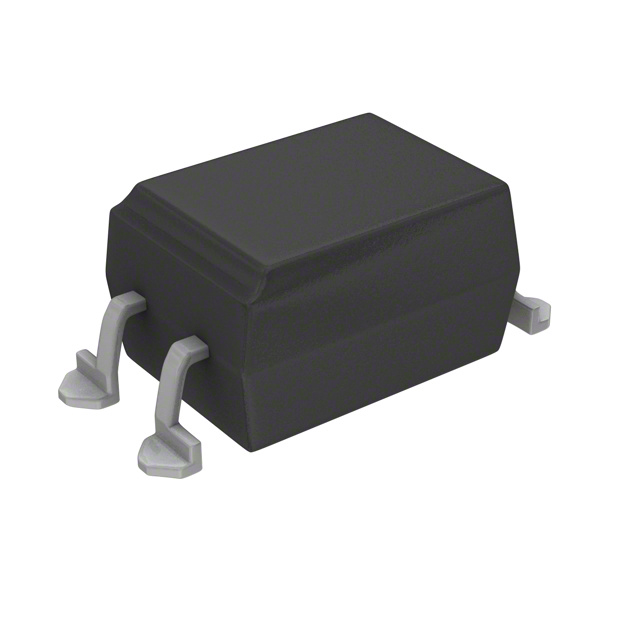

The SFH628A DIP and SFH6286 SMD feature a high current transfer ratio, low coupling capacitance and high isolation voltage. These couplers have a GaAs infrared emitting diode, which is optically coupled to a silicon planar phototransistor detector, and isincorporated in a plastic DIP-4 or SMD package.
FEATURES
• High common mode interference immunity
• Isolation test voltage, 5300 VRMS
• Low coupling capacitance
• Good CTR linearity depending on forward current
• Low CTR degradation
• High collector emitter voltage, VCEO= 55 V
上升/下降时间 3.5µs, 5µs
通道数 1
正向电压 1.1 V
耗散功率 150 mW
上升时间 0.0035 ms
隔离电压 5300 Vrms
正向电流 50 mA
输出电压Max 55 V
输入电流Min 50 mA
正向电压Max 1.5 V
正向电流Max 50 mA
下降时间 0.005 ms
下降时间Max 5 µs
上升时间Max 3.5 µs
工作温度Max 100 ℃
工作温度Min -55 ℃
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 4
封装 SMD-4
长度 4.83 mm
宽度 6.81 mm
高度 3.81 mm
封装 SMD-4
工作温度 -55℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
