SFH601-4

VISHAY  SFH601-4  光耦合器

DESCRIPTION

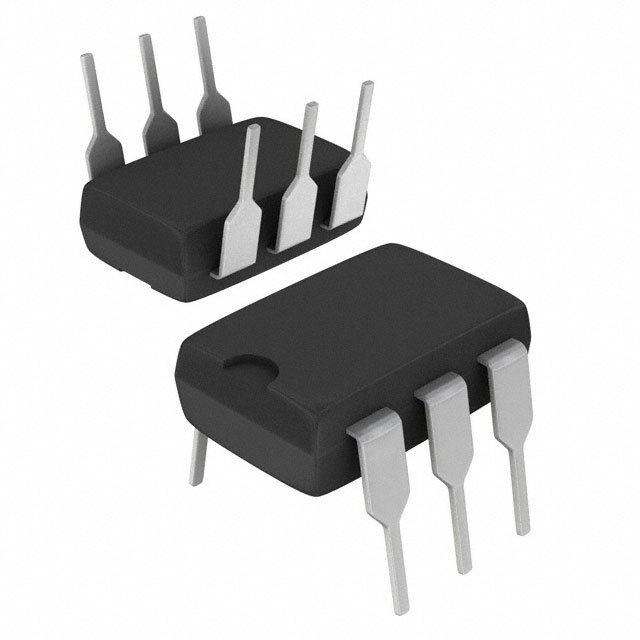

The SFH601 is an optocouplerwith a gallium arsenide LED emitter which is optically coupled with a silicon planar phototransistor detector. The component is packaged in a plastic plug-in case 20 AB DIN 41866. The coupler transmits signals between two electrically isolated circuits.

FEATURES

• Isolation test voltage 1.0 s, 5300 VRMS

•VCEsat0.25 ≤0.4 V, IF= 10 mA, IC= 2.5 mA

• Built to conform to VDE requirements

• Highest quality premium device

• Long term stability

• Storage temperature, - 55 ° to + 150 °C

• Lead Pb-free component

• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
