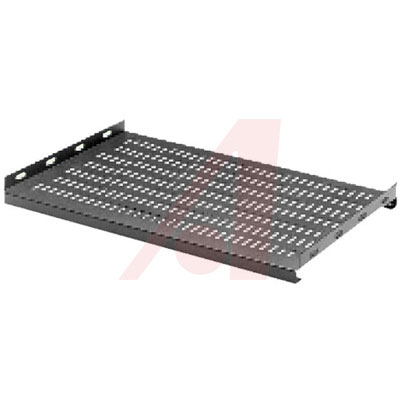

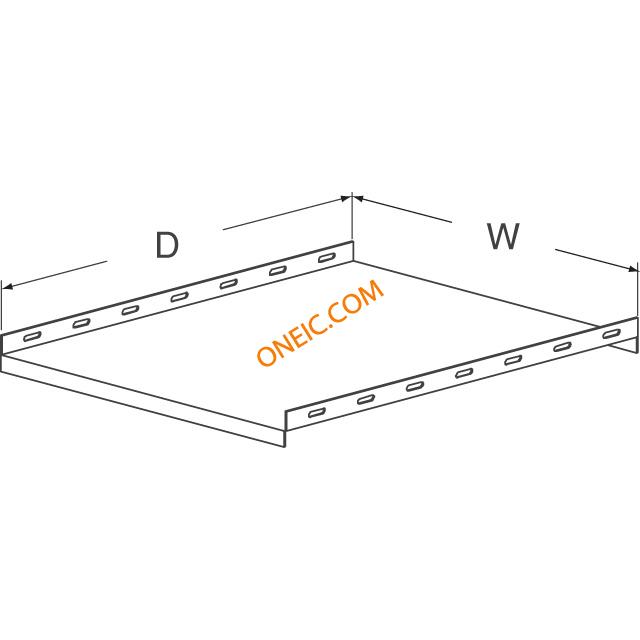

SH-2385

BUD INDUSTRIES  SH-2385  有孔搁板, 1.578英寸, 钢制

Finish Smooth Black, Thickness 0.890 in., Shelf Cabinets

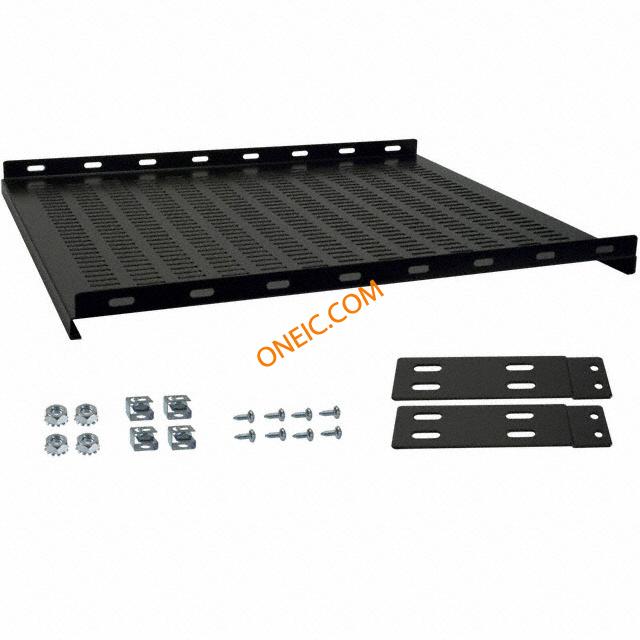

16 gauge steel; supports 200 Lbs.; flanged front and rear for added support; black finish; models to fit 19" panel widths, available in ventilated and non-ventilated versions ventilated have 20% open area; hardware supplied.

** Design Features**

* Welded Steel Cabinet Rack Similar to Economizer with Louvered Side Panels and Rear Door, Ventilated Top Suitable for FN-1282 Exhaust Fan

* Accept 19.00" EIA Width Panels

* 1200 Lb. Equipment Load Capacity

* Four 4.00" Diameter Cable Access Holes In the Top and One 9.56" Square Hole In the Base

* Insulated Locking Econoglas Front Door

* Two Pairs of Installed Full Height Panel Mounting Rails Use #7346 Screws — Order Separately

* Style A Includes Two Ventilated Shelves

* Style B Includes Leveler Kits

** Finishes**

* Style A: Sand Texture S, Black Texture BT, and Royal Blue Texture RB Are Standard

* Style B: Black Textured BT Is Standard

* Both Styles Are Available In Other Textured Colors at No Additional Cost
