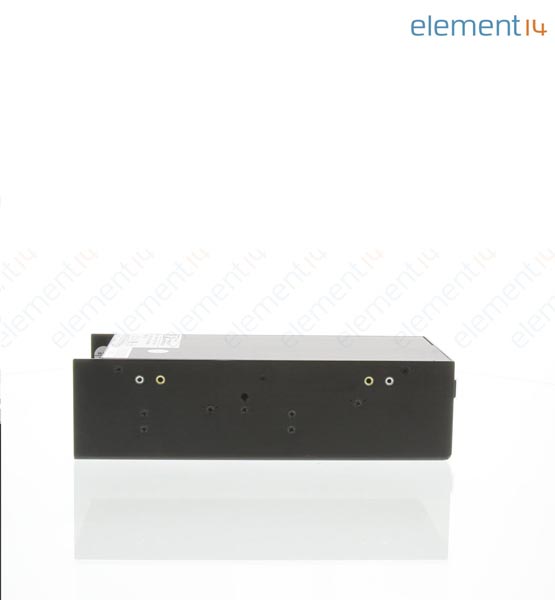

XP POWER SMR800PS24 封闭式电源 交流/直流, 紧凑, 固定/可调, 90 V, 264 V, 800 W, 24 V, 33.33 A
The is a 24V/800W 1-output enclosed Power Supply features a compact size and integral fan cooling. SMR-series, compensates for up to 0.5V line drop remote sense and remote on/off feature.
- .
- Up to 900W Peak output power
- .
- 110 to 130% Recycle input to reset overvoltage protection
- .
- Measured internally with auto recovery over-temperature protection
- .
- 110 to 140% with Auto recovery overload Protection
- .
- Trip and restart hiccup mode short-circuit protection
- .
- 0 to 70°C Operating temperature range
- .
- 5 to 90%, Non-condensing operating humidity
电源电压DC 264 V
额定功率 800 W
输出接口数 1
输出电压 24 V
输出电流 33.3 A
输出功率 799 W
输入电压AC Max 264 v
输入电压AC Min 90 v
输出电流Max 33.33 A
输出功率Max 800 W
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 264 V
电源电压Max 264 V
电源电压Min 90 V
安装方式 Chassis
长度 63.5 mm
宽度 108 mm
高度 233 mm
重量 1.5 kg
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMR800PS24 XP Power | 当前型号 | 当前型号 |
SHP1000PS24 XP Power | 类似代替 | SMR800PS24和SHP1000PS24的区别 |
