N 通道 MOSFET,E 系列,低品质因数,Vishay SemiconductorVishay E 系列 MOSFET 电源是高电压晶体管,具有超低最大接通电阻、低灵敏值和快速切换功能。 它们提供各种电流额定值。 典型应用包括服务器和电信电源、LED 照明、回扫转换器、功率因数校正 PFC 和开关模式电源 SMPS。### 特点低灵敏值 FOM RDSon x Qg 低输入电容 Ciss 低接通电阻(RDS(接通)) 超低栅极电荷 Qg 快速切换 减少切换和传导损耗 ### MOSFET 晶体管,Vishay Semiconductor
The is a 650V N-channel enhancement-mode Power MOSFET with single configuration. It is suitable for SMPS, server, telecom and PFC power supplies, solar, motor drives, induction heating, renewable energy and welding applications.
针脚数 3
漏源极电阻 0.23 Ω
极性 N-Channel
耗散功率 180 W
阈值电压 2 V
漏源极电压Vds 600 V
上升时间 51 ns
输入电容Ciss 1350pF @10VVds
下降时间 33 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 180 W
安装方式 Surface Mount
引脚数 3

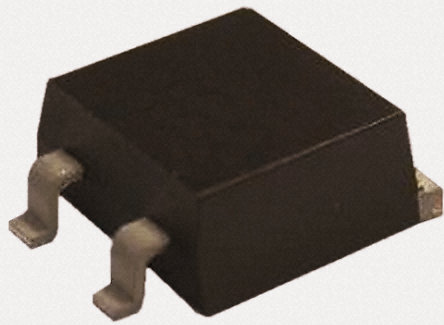

封装 TO-252-3
长度 10.67 mm
宽度 9.65 mm
高度 4.83 mm
封装 TO-252-3
工作温度 -55℃ ~ 150℃
包装方式 Tape & Reel TR
制造应用 Computers & Computer Peripherals, Portable Devices, Alternative Energy, Industrial, Motor Drive & Control, Lighting, Communications & Networking, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
