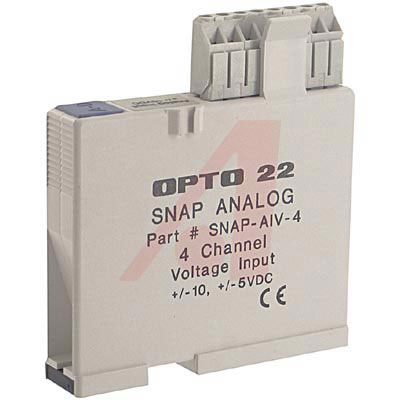

SNAP-AIV-4

OPTO 22  SNAP-AIV-4  输入/输出模块, 5V, 170mA

Snap Analog Input Modules, 5 VDC @ 170 mA, 0 to 70 °C

* Rugged packaging

* Convenient pluggable wiring

* Out of range indication

* Accepts upto 14 AWG wire

The SNAP-AIMA module with 2 channels provide an input range of -20mA to +20mA. The four-channel module can be used only with SNAP Ultimate, SNAP Ethernet, and SNAP Simple brains. These modules do not supply loop excitation current. Since all inputs share a common reference, the module must be installed at the beginning or end of a typical 4 to 20mA loop.
