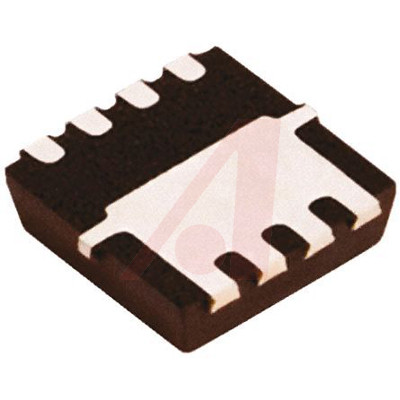

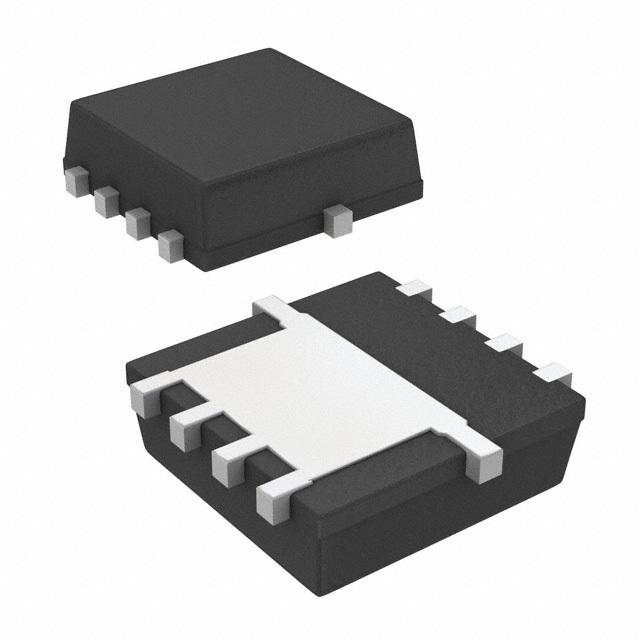

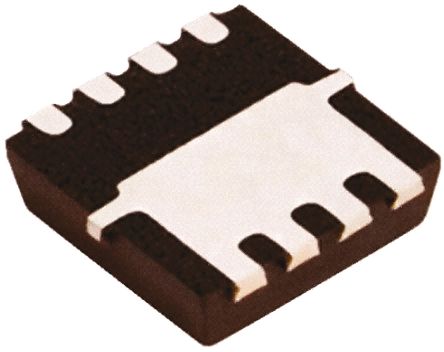

VISHAY SI7114ADN-T1-GE3 场效应管, MOSFET, N通道, 30V, 11.7A, POWERPAK, 整卷
**Features:
**
* Halogen-Free According to IEC 61249-2-21 Definition**
**
* TrenchFET® Gen IV Power MOSFET**
**
* 100% Rg and UIS Tested**
**
* Compliant to RoHS Directive 2002/95/EC**
Applications:
**
* Switch Mode Power Supplies**
**
* Personal Computers and Servers**
**
* Telecom Bricks
* VRMs and POL
艾睿:
Trans MOSFET N-CH 30V 18A 8-Pin PowerPAK 1212 T/R
安富利:
Trans MOSFET N-CH 30V 18A 8-Pin PowerPAK 1212 T/R
富昌:
N-Channel 30 V 7.5 mΩ 21 nC TrenchFET® Power Mosfet - PowerPAK- 1212-8
Verical:
Trans MOSFET N-CH 30V 18A 8-Pin PowerPAK 1212 T/R
针脚数 8
漏源极电阻 0.01 Ω
极性 N-Channel
耗散功率 3.7 W
阈值电压 3 V
漏源极电压Vds 30 V
连续漏极电流Ids 18.3 A
上升时间 20 ns
输入电容Ciss 1230pF @15VVds
下降时间 10 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 39 W
安装方式 Surface Mount
引脚数 8
封装 1212
长度 3.15 mm
宽度 3.15 mm
高度 1.07 mm
封装 1212
工作温度 -55℃ ~ 150℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SI7114ADN-T1-GE3 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SI7112DN-T1-GE3 威世 | 类似代替 | SI7114ADN-T1-GE3和SI7112DN-T1-GE3的区别 |
CSD16411Q3 德州仪器 | 功能相似 | SI7114ADN-T1-GE3和CSD16411Q3的区别 |
