SACC-M 8MS-3CON-M-SW

PHOENIX CONTACT  SACC-M 8MS-3CON-M-SW  传感器连接器, PLUSCON I/O Devices and PLC Controller Cable Assemblies

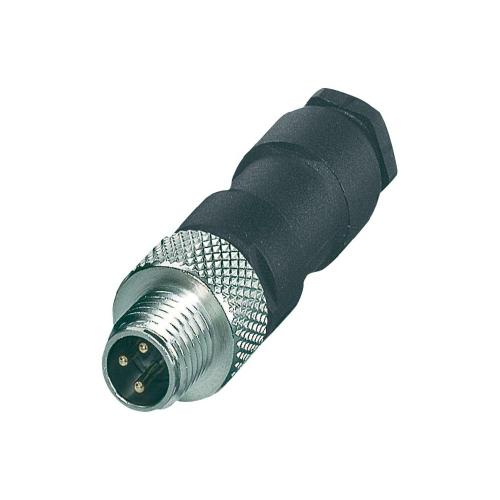

The is a 3-position straight M8 Plug-in Connector with Au plated CuZn contact, PA carrier contact, PBT grip body, nickel-plated brass knurls and NBR sealing. Flexible connectors for on-site assembly. Screw connection technology for a large selection of different conductors. Used with PLUSCON I/O devices and PLC controller cable assemblies.

.

0.14 to 0.5mm² Conductor cross section

.

3.5 to 5mm External cable diameter

.

-40 to 85°C Ambient temperature range

.

UL94-HB Flammability rating

.

IP67 Protection rating
