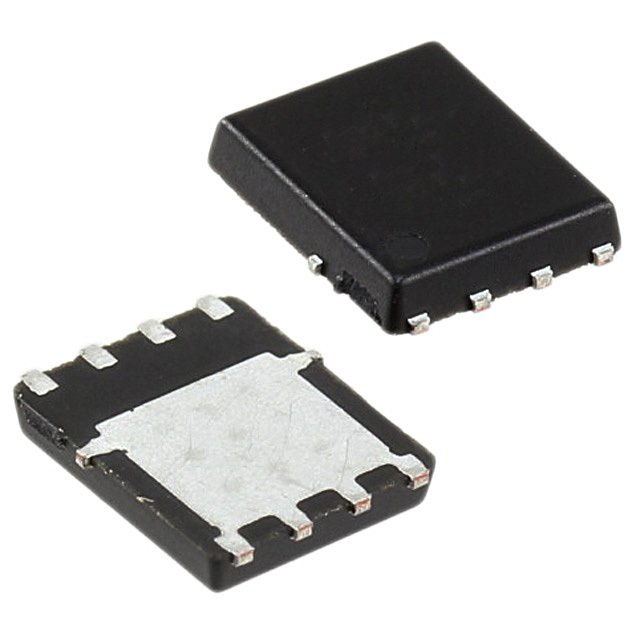

VISHAY SIR872DP-T1-GE3 晶体管, MOSFET, N沟道, 53.7 A, 150 V, 0.0148 ohm, 10 V, 1.5 V
The is a 150VDS TrenchFET® N-channel enhancement-mode Power MOSFET suitable for fixed telecom, DC-to-DC converter, primary and secondary side switch applications.
通道数 1
针脚数 8
漏源极电阻 0.0148 Ω
极性 N-Channel
耗散功率 104 W
阈值电压 1.5 V
漏源极电压Vds 150 V
输入电容Ciss 2130pF @75VVds
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 104 W
安装方式 Surface Mount
引脚数 8
封装 PowerPAKSO-8
长度 6.25 mm
宽度 5.26 mm
高度 1.12 mm
封装 PowerPAKSO-8
工作温度 -55℃ ~ 150℃
产品生命周期 Not Recommended for New Designs
制造应用 Industrial, Power Management, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
