SIHP15N60E-GE3概述
VISHAY SIHP15N60E-GE3 功率场效应管, MOSFET, N沟道, 15 A, 600 V, 0.23 ohm, 10 V, 2 V
The is a 650V N-channel enhancement-mode Power MOSFET with single configuration. It is suitable for SMPS, server, telecom and PFC power supplies, solar, motor drives, induction heating, renewable energy and welding applications.
- .
- Low figure-of-meritFOM RON x Qg
- .
- Low input capacitance CISS
- .
- Reduced switching and conduction losses
- .
- Ultra low gate charge
- .
- Avalanche energy rated
- .
- Halogen-free
SIHP15N60E-GE3中文资料参数规格
技术参数
针脚数 3
漏源极电阻 0.23 Ω
极性 N-Channel
耗散功率 180 W
阈值电压 2 V
漏源极电压Vds 600 V
输入电容Ciss 1350pF @100VVds
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 180 W
封装参数
安装方式 Through Hole
引脚数 3

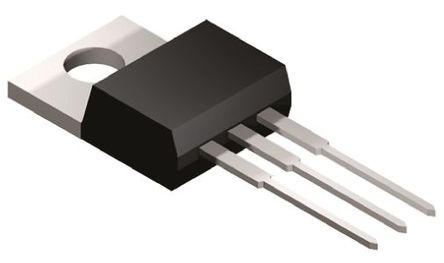

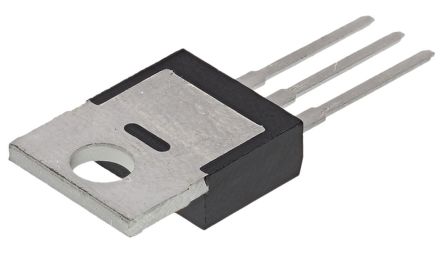

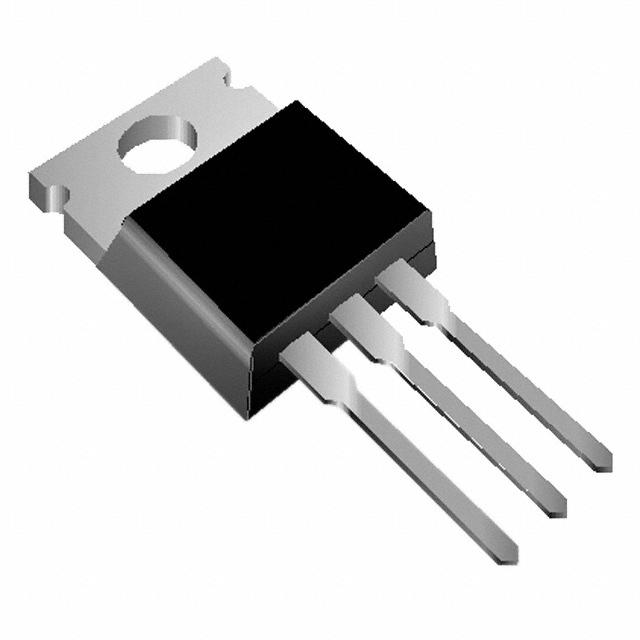

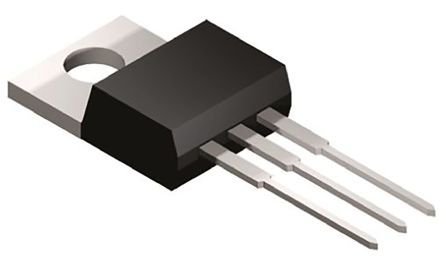

封装 TO-220
外形尺寸
长度 10.51 mm
宽度 4.65 mm
高度 9.01 mm
封装 TO-220
其他
包装方式 Tube
制造应用 Industrial, Lighting, Alternative Energy, Motor Drive & Control, Portable Devices, Computers & Computer Peripherals, Communications & Networking, Power Management
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
