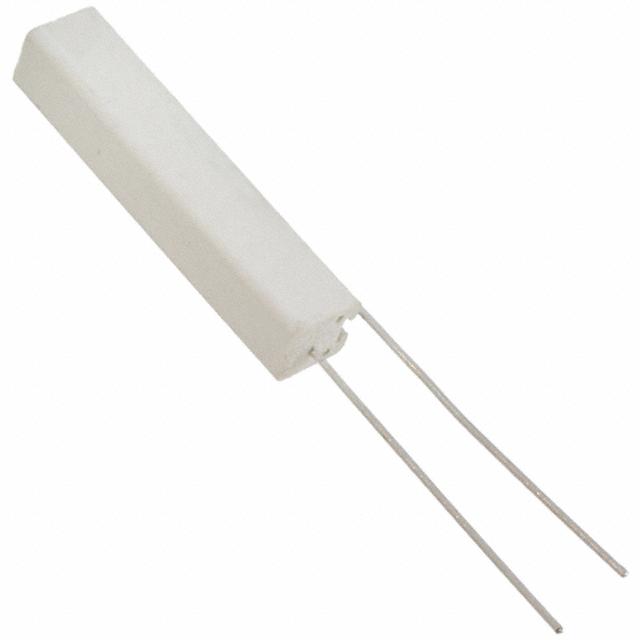

SBCHE6270RJ

SBC 系列 7W，轴向有卓越电和机械特点的防火线绕电阻器玻璃纤维核上的 阻抗电线伤口和一个陶瓷体上起保护作用把好热特点与高绝缘电阻结合起来，给好自然的保护 引线长度允许垂直或水平安装。 70°C 时功率 | 7W ---|--- 电阻容差 | 6.8Ω ± 5% 温度系数 | 工作温度 | \- 55 ° C → +250 ° C 最大持续电压 | √PR 介电强度 | 2000 Vms 绝缘电阻 | >10000MΩ 长度 | 38 mm 宽度 | 7 mm 高度 | 8mm 引线直径 | 0.8 mm ### 陶瓷线绕，轴向 - 1W 到 17W### 陶瓷 Wirewound，轴向 - 1W 到 17W

SBC 系列 7W，轴向

有卓越电和机械特点的防火线绕器玻璃纤维核上的

阻抗电线伤口和一个陶瓷体上起保护作用把好热特点与高绝缘电阻结合起来，给好自然的保护

引线长度允许垂直或水平安装。

### 陶瓷 Wirewound，轴向 - 1W 到 17W

欧时:
TE Connectivity SBC 系列 绕线 线绕电阻器 7W 270Ω, ±5%, ±200ppm/°C

立创商城:
270Ω ±5% 7W

得捷:
RES 270 OHM 5% 7W AXIAL

e络盟:
通孔电阻器, 270 ohm, SBC系列, 7 W, ± 5%, 轴向引线, 43.5 V

艾睿:
Res Wirewound 270 Ohm 5% 7W ±200ppm/°C Ceramic AXL Box/Loose

Allied Electronics:
Resistor; Wirewound; Res 270 Ohms; Pwr-Rtg7 W; Tol 5%; Radial; Ceramic Housed

安富利:
Res Wirewound 270 Ohm 5% 7W ±200ppm/°C Ceramic AXL Thru-Hole

Chip1Stop:
Res Wirewound 270 Ohm 5% 7W ±200ppm/℃ Ceramic AXL Loose Piece

Newark:
The TE Connectivity SBC Square Ceramic series are through hole, power wirewound resistors. These resistors are wound on continuous glass fibre elements or have a ceramic core depending on resistance value. The element is housed in a ceramic case and sealed with inorganic silica filler. Their construction gives a resistor with high insulation resistance and low surface temperature, capable of withstanding high overload currents. These resistors are ideally suited to a variety of applications within industrial and commercial environments where performance and reliability are of prime importance. The SBC series resistors are mainly used in fan force ovens, cooker hoods, power supplies and triac based speed control applications.
