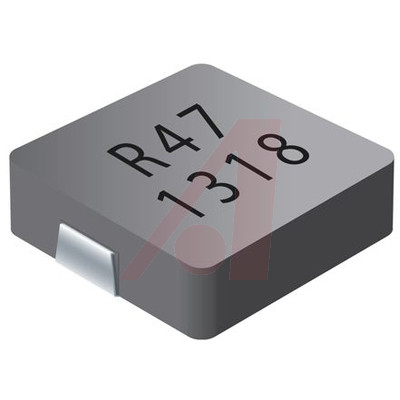

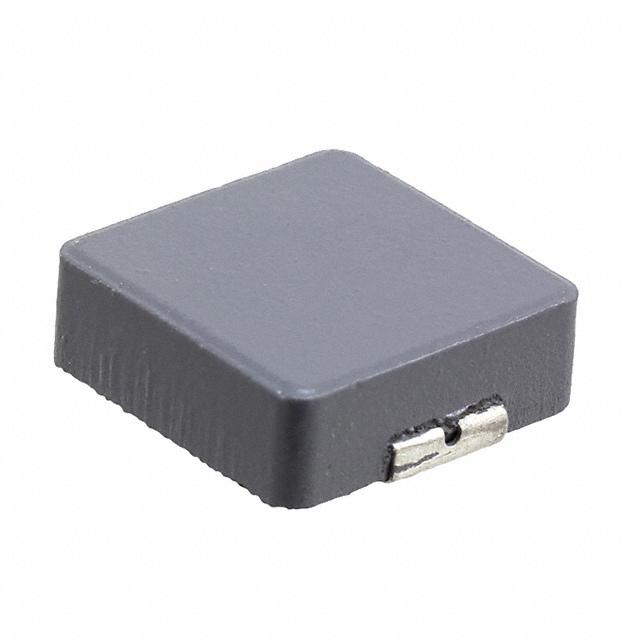

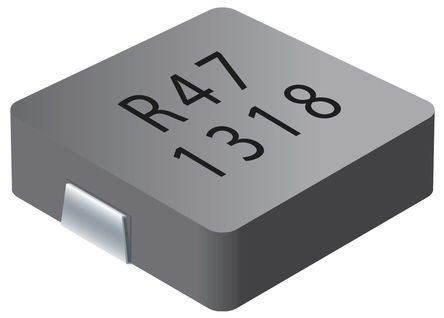

SRP1245A-R47M

BOURNS  SRP1245A-R47M  表面贴装功率电感器, AEC-Q200 SRP1245A系列, 470 nH, ± 20%, 屏蔽, 1100 µohm, 38 A

SRP1245A 系列磁性屏蔽式功率器

Bourns SRP 系列高电流电感器具有羰基粉芯且符合 AEC-Q200。

**特点和优势：**

SRP1245A 系列电感器具有屏蔽结构

羰基粉芯

高饱和电流

电感范围 0.33 μH 至 18 μH

符合 AEC-Q200

符合 RoHS 标准且无卤

应用包括汽车系统（驾驶员辅助、信息、娱乐和照明）、

直流-直流转换器和电源

得捷:
FIXED IND 470NH 38A 1.1 MOHM SMD

欧时:
Bourns SRP1245A 系列 屏蔽 羰基粉芯材 470 nH 绕线贴片电感器 SRP1245A-R47M, ±20%容差, 38A Idc

e络盟:
功率电感SMD, 470 nH, 38 A, 屏蔽, 65 A, SRP1245A 系列, 13.5mm x 12.5mm x 4.8mm

艾睿:
This power SRP1245A-R47M surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 150 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has an inductance of 470n H. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 38 A with a maximum resistance of 1.1m Ohm. It has a tolerance of 20%. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 70MTyp Hz. This product is 14 mm long, 5 mm tall and 12.8 mm deep.

Allied Electronics:
Inductor; Shielded Power; AEC-Q200; 0.47uH20% SMT 1245

安富利:
Ind Power Shielded 0.47uH 20% 100KHz Carbonyl Powder 38A T/R

Chip1Stop:
Inductor Power Shielded Wirewound 470nH 20% 100KHz 20Q-Factor Carbonyl Powder 38A 1.1mOhm DCR Automotive T/R

Verical:
Inductor Power Shielded Wirewound 0.47uH 20% 100KHz 20Q-Factor Carbonyl Powder 38A 0.0011Ohm DCR Automotive T/R

Newark:
# BOURNS  SRP1245A-R47M  Surface Mount Power Inductor, SRP1245A Series, 470 nH, 38 A, 65 A, Shielded, 1100 µohm

Online Components:
Inductor Power Shielded Wirewound 470nH 20% 100KHz 20Q-Factor Carbonyl Powder 38A 1.1mOhm DCR Automotive T/R

Electro Sonic:
Inductor Power Shielded Wirewound 0.47uH 20% 100KHz 20Q-Factor Carbonyl Powder 38A 0.0011Ohm DCR Automotive T/R
