SPX3819 系列 1.8 V 500 mA 低噪声 LDO 稳压器 - SOT-23-5
Stable voltages are always needed for sensitive systems implement this LDO linear regulator from EXAR. It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.01@100uA|0.125@50mA|0.18@150mA|0.34@500mA V. This voltage regulation device"s single output can produce a current up to 0.5 A. By only needing an input voltage of 2.5 V with a maximum of 16 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. At a load regulation of 0.4% and line regulation of 0.1%/V your circuit is capable of maintaining a constant voltage level at your output. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
输出接口数 1
输出电压 1.8 V
输出电流 500 mA
针脚数 5
跌落电压 340 mV
输入电压Max 16 V
输入电压Min 2.5 V
输出电压Min 1.8 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 2.5V ~ 16V
安装方式 Surface Mount
引脚数 5

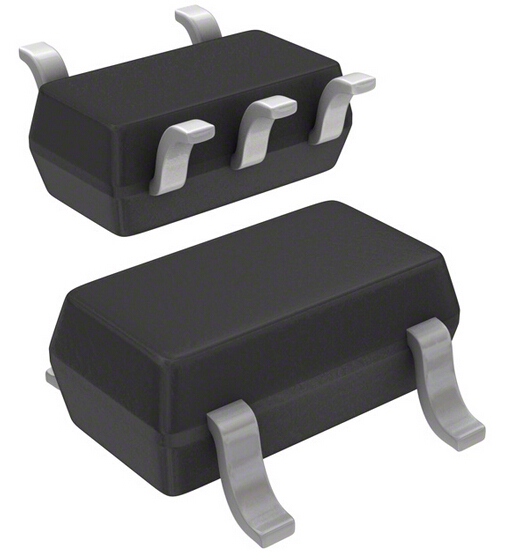

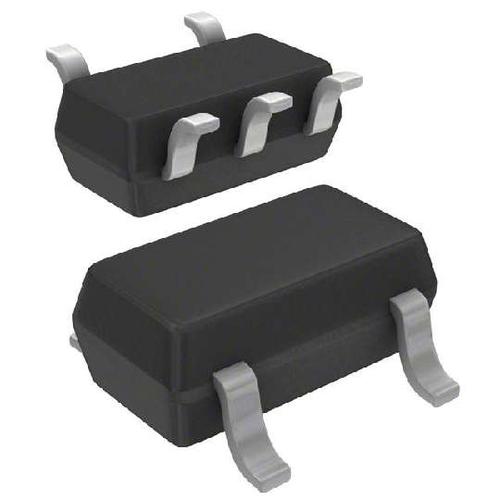

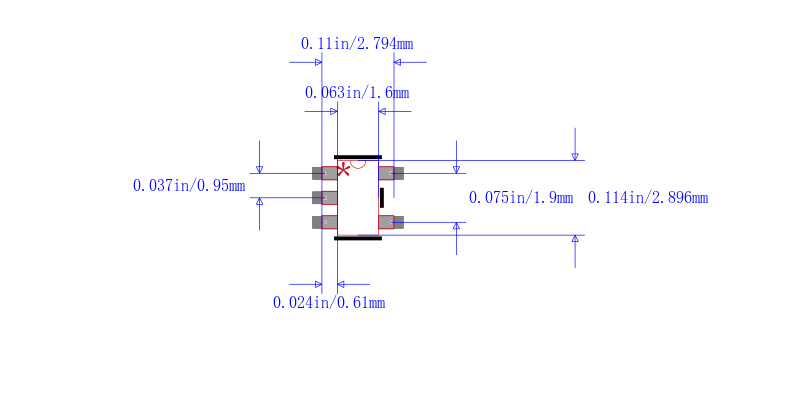

封装 SOT-23-5
高度 1.15 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SPX3819M5-L-1-8/TR Exar Corporation 艾科嘉 | 当前型号 | 当前型号 |
SPX3819M5-L-1-8 艾科嘉 | 类似代替 | SPX3819M5-L-1-8/TR和SPX3819M5-L-1-8的区别 |
