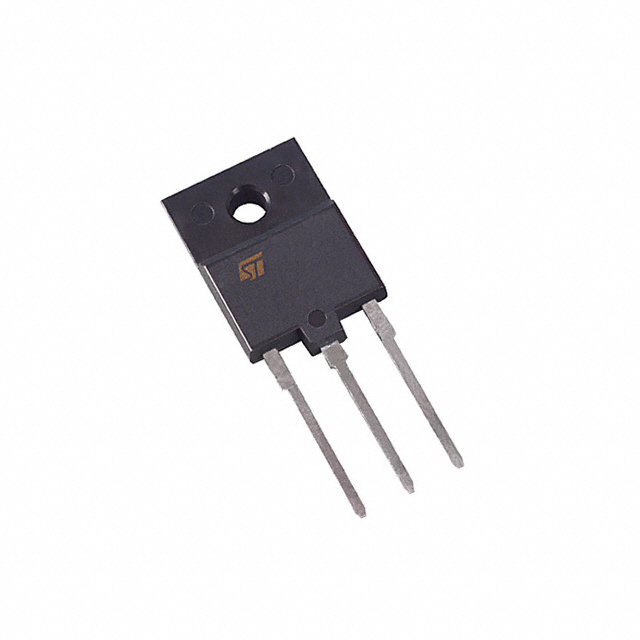

STH15NB50FI

N沟道500V - 0.33ohm - 14.6A - T0-247 / ISOWATT218的PowerMESH MOSFET N-CHANNEL 500V - 0.33ohm - 14.6A - T0-247/ISOWATT218 PowerMESH MOSFET

DESCRIPTION

Using the latest high voltage MESH OVERLAY™ process, SGS-Thomson has designed an advanced family of power MOSFETs with outstanding performances. The new patent pending strip layout coupled with the Company’s proprietary edge termination structure, gives the lowest RDSon per area, exceptional avalanche and dv/dt capabilities and unrivalled gate charge and switching characteristics.

■ TYPICAL RDSon = 0.33 Ω

■ EXTREMELY HIGH dv/dt CAPABILITY

■ ± 30V GATE TO SOURCE VOLTAGE RATING

■ 100% AVALANCHE TESTED

■ VERY LOW INTRINSIC CAPACITANCES

■ GATE CHARGE MINIMIZED

APPLICATIONS

■ HIGH CURRENT, HIGH SPEED SWITCHING

■ SWITCH MODE POWER SUPPLIES SMPS

■ DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE
