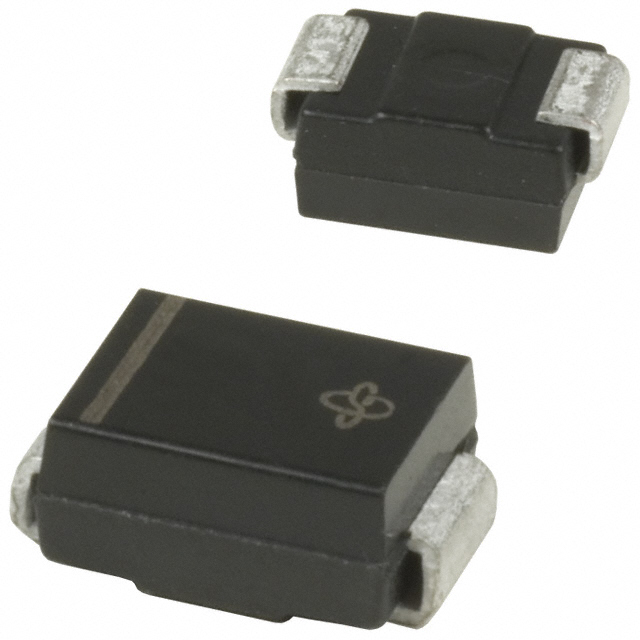

TRANSZORB® 瞬态电压抑制器表面安装单向 600W，SMBJ 系列，Vishay Semiconductor### 瞬态电压抑制器，Vishay Semiconductor
The TRANSZORB SMBJ series surface-mount Transient Voltage Suppressor Diode offers 600W peak pulse power capability with a 10/1000µs waveform, 0.01% repetitive rate duty cycle. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET and signal lines of sensor units.
- .
- Ideal for automated placement
- .
- Glass passivated chip junction
- .
- Available in unidirectional and bidirectional
- .
- Excellent clamping capability
- .
- Very fast response time
- .
- Low incremental surge resistance
- .
- -55 to 150°C Operating junction temperature range
工作电压 33 V
击穿电压 40.6 V
电路数 1
针脚数 2
耗散功率 600 W
钳位电压 53.3 V
测试电流 1 mA
最大反向击穿电压 40.6 V
脉冲峰值功率 600 W
最小反向击穿电压 36.7 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA-2
长度 4.57 mm
宽度 3.94 mm
高度 2.44 mm
封装 DO-214AA-2
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, Sensing & Instrumentation, Consumer Electronics, Lighting, 通用, Computers & Computer Peripherals, Automotive, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMBJ33A-E3/52 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SMBJ33A 威世 | 完全替代 | SMBJ33A-E3/52和SMBJ33A的区别 |
SMBJ33A/54 威世 | 类似代替 | SMBJ33A-E3/52和SMBJ33A/54的区别 |
