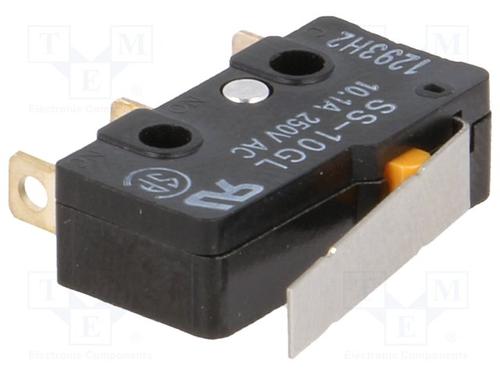

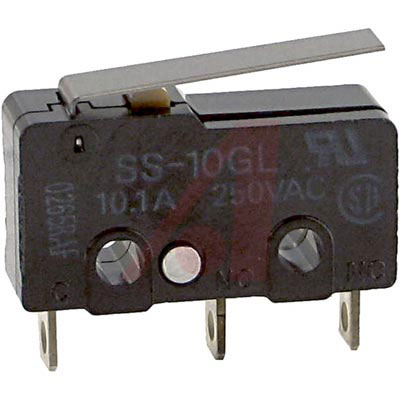

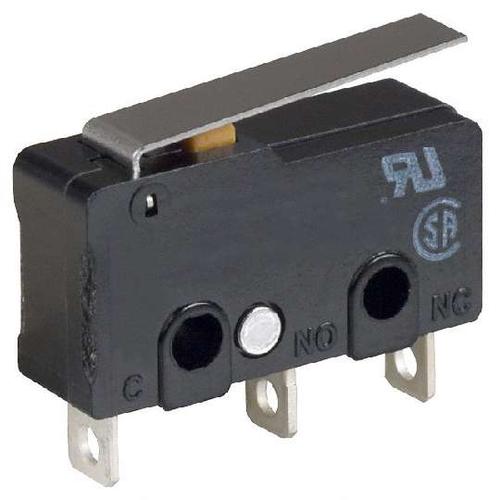

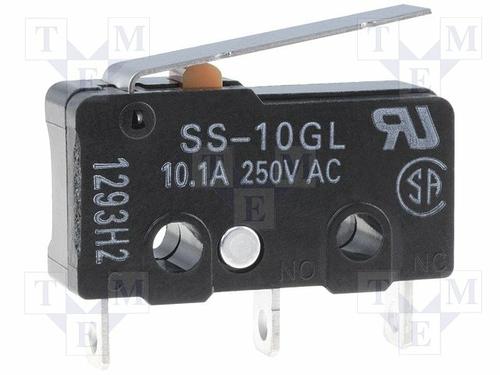

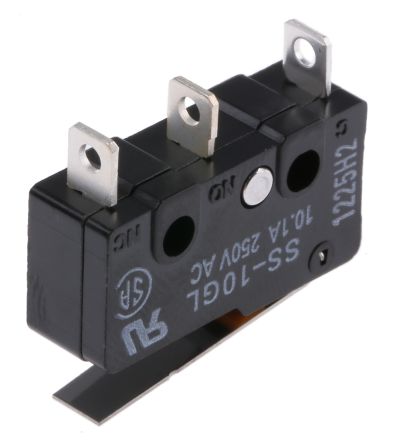

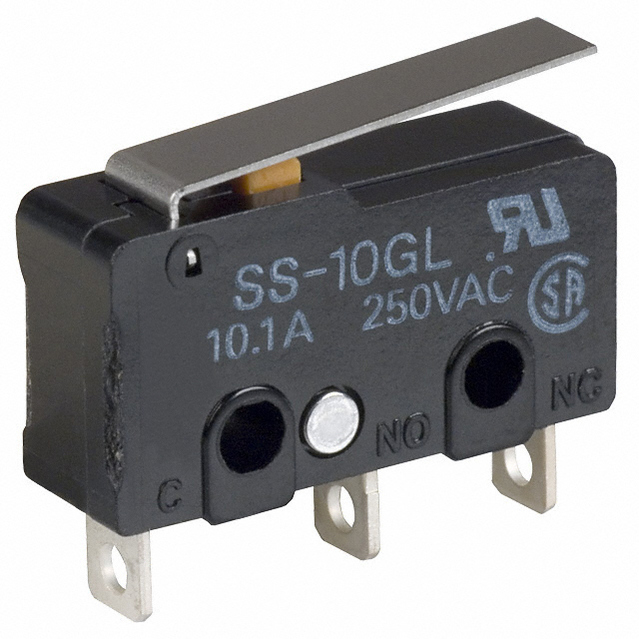

SS-10GL

OMRON  SS-10GL  摁式微型开关, SPDT 10A 250V

SS 超微型基本 10.1 A

包含简单稳定的两个分离式弹簧，确保长工作寿命（3000 万次操作）

提供多种型号，操作力从低到高

提供焊接、快速连接端子 #110 和印刷电路板端子

欧时:
Switch,SPDT,hinge lever,solder term,10A

贸泽:
基本/快动开关 HINGE LVR SLR TERM

e络盟:
81023000,微动开关, 合页杆, SPDT 10A 250V

艾睿:
If you&s;re looking for rapid switching to close your circuit use this SS-10GL snap-action switch from Omron. This device has a maximum current rating of 10.1 A @ 250VAC 14VDC. It has a SPDT configuration. This snap action switch has an operating temperature range of -25 °C to 85 °C. The SS-10GL snap action switch has a solder termination style. This product is 19.8 mm long, 20 mm tall and 6.4 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 14 VDC.

Allied Electronics:
Switch; Snap Action; 0.1 A; 125 VAC; SPDT; 50 g; 0.78 in.; -25 to +85 ° C

Jameco:
Action Snap Switch N.O./N.C. SPDT Hinge Lever Solder 10.1A 250VAC Screw Mount

安富利:
Switch Snap Action N.O./N.C. SPDT Hinge Lever Solder 10.1A 250VAC 14VDC 0.49N Screw Mount

Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Hinge Lever Solder 10.1A 250VAC 14VDC 0.49N Screw Mount

TME:
Microswitch SNAP ACTION; with lever; SPDT; 10A/250VAC; ON-ON

Verical:
Switch Snap Action N.O./N.C. SPDT Hinge Lever Solder 10.1A 250VAC 14VDC 0.49N Screw Mount

Newark:
# OMRON ELECTRONIC COMPONENTS  SS-10GL  Microswitch, SS Series, SPDT, Solder, 10 A, 250 VAC

MASTER:
Switch Snap Action N.O./N.C. SPDT Hinge Lever 10.1A 250VAC 0.49N Screw Mount Solder

Online Components:
Switch Snap Action N.O./N.C. SPDT Hinge Lever 10.1A 250VAC 0.49N Screw Mount Solder

Electro Sonic:
Switch Snap Action N.O./N.C. SPDT Hinge Lever 10.1A 250VAC 0.49N Screw Mount Solder
