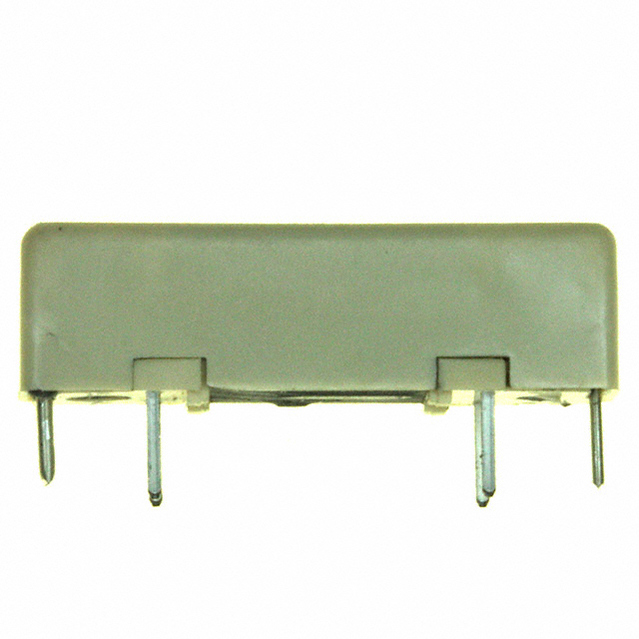

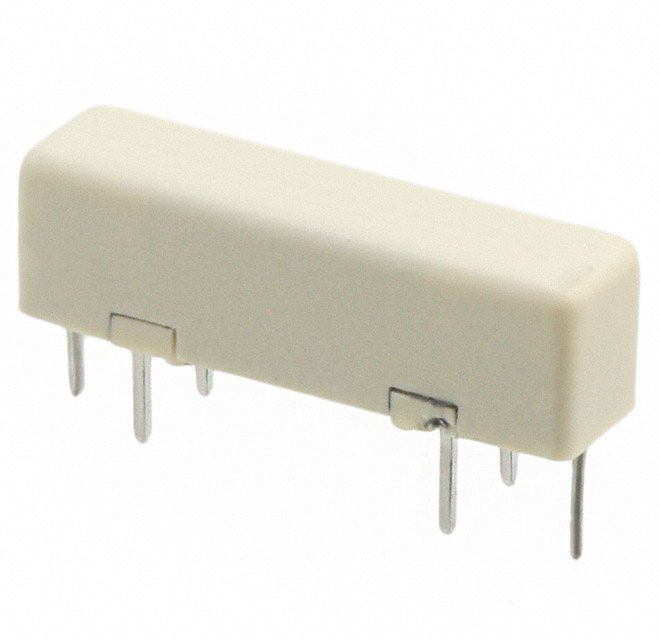

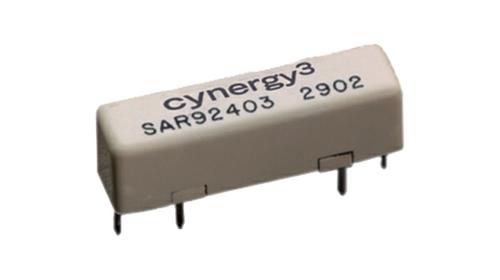

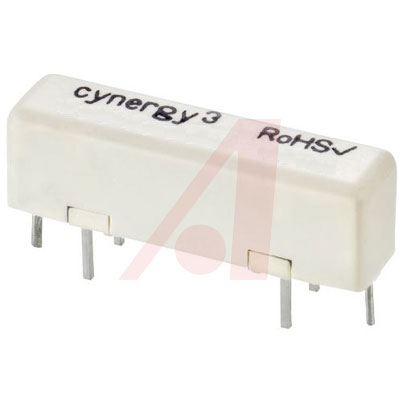

CYNERGY3 SAR90505 干簧继电器, S系列, SPST-常开, 5 VDC, 通孔安装, 140 ohm, 500 mA
The S series High Voltage Relay developed for the high voltage ATE market, where printed circuit board space is at a premium. The S series high voltage relay offers a 3/5kV isolation performance. Low contact resistance, through the use of Rhodium contact reed switches, makes it suitable for many high voltage applications at DC and low frequency, where performance and reliability are paramount.
额定电流 0.5 A
绝缘电阻 10 TΩ
触点类型 SPST-NO
线圈电压 5 VDC
线圈电流 35.7 mA
线圈电阻 140 Ω
线圈电压DC 5 V
开关电流Max 500 mA
工作温度Max 70 ℃
工作温度Min -20 ℃
额定电压 5 VDC
接触电阻Max 80 mΩ
安装方式 Through Hole
引脚数 6
高度 8.5 mm
工作温度 -20℃ ~ 70℃
产品生命周期 Active
包装方式 Tray
制造应用 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
HTS代码 8536410030
