SDE9ST

ITW MCMURDO  SDE9ST  连接器, D sub, 堆叠式, Special D系列, DE, 插座, 9 触点, 钢主体, 焊接

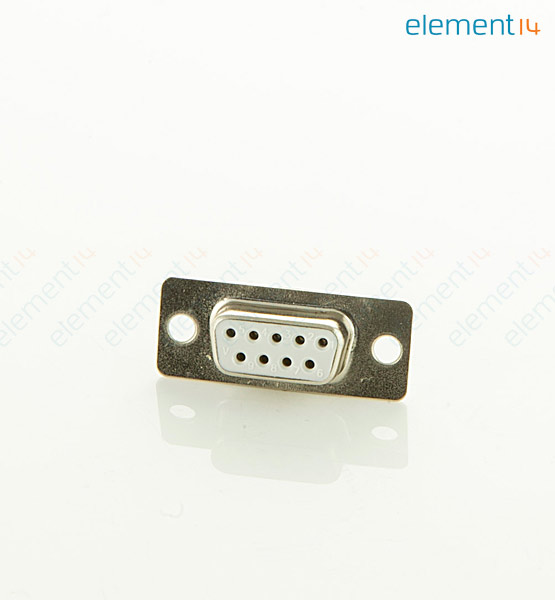

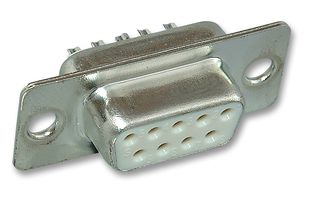

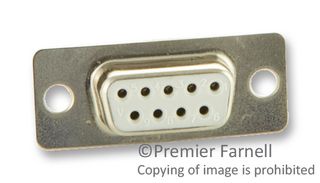

The from ITW Mcmurdo is a special D series 9 position D sub receptacle connector with DE shell size. Special D series is a range of D connectors utilising stamped and formed or turned contacts to provide low cost option for commercial applications. This connector has UL94 V-0 rated thermoplastic insulation.

.

Tinned steel shell for EMI/RFI shielding

.

Copper alloy contacts with hard acid gold plating

.

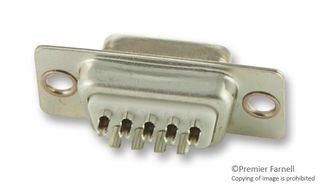

Solder bucket termination

.

Standard fixing holes

.

High temperature range from -55°C to 105°C

.

Current rating of 3A for individual contact in isolation at 70°C

.

Current rating of 2A for all contacts simultaneously at 70°C

.

Working voltage of 350V DC or AC peak

.

Maximum contact resistance of 15mohm

.

Minimum insulation resistance of 5000mohm
