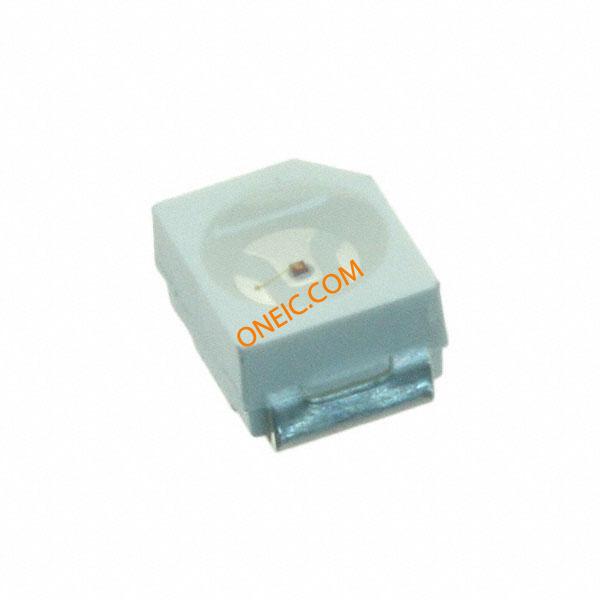

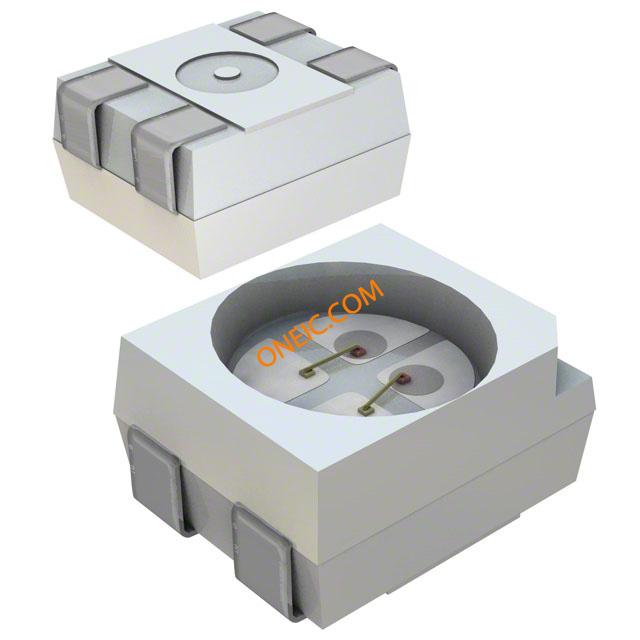

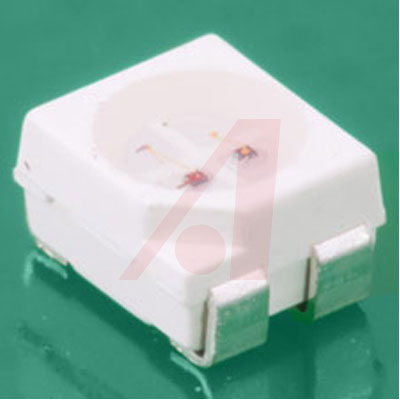

BIVAR SMP4-SBC-RY 发光二极管, 表面安装, PLCC, 红/黄, 180MCD
** SMFLP Series Flexible Light Pipes**
The SMFLP series from Bivar is a family of flexible light pipe assemblies. They feature a flexible light pipe with a vertical surface mount SMD LED adapter. SMFLP flexible light pipes have a low profile clear lens is a variety of different diameters. They are also available in a range of different fiber lengths. SMFLP light pipes are mounted over SMD LEDs and transfer the light to the desired user interface, for example front panels. The flexibility of the light pipe enables flexibility in design and in the positioning of the LEDs.
额定功率 72 mW
正向电压 1.90 V
波长 631nm Red, 591nm Yellow
发光强度 180 mcd
视角 120°
峰值波长 631 nm, 591 nm
测试电流 20 mA
正向电流 20 mA
正向电压Max 2.4 V
正向电流Max 30 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 72 mW
安装方式 Surface Mount
引脚数 4
封装 PLCC-4
高度 1.95 mm
封装 PLCC-4
颜色 Red, Yellow
产品生命周期 Obsolete
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMP4-SBC-RY Bivar | 当前型号 | 当前型号 |
SMTL4-SBC-RY Bivar | 类似代替 | SMP4-SBC-RY和SMTL4-SBC-RY的区别 |
