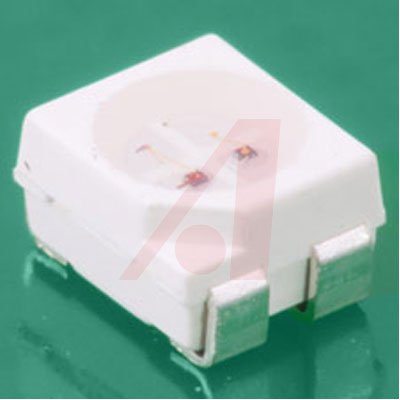

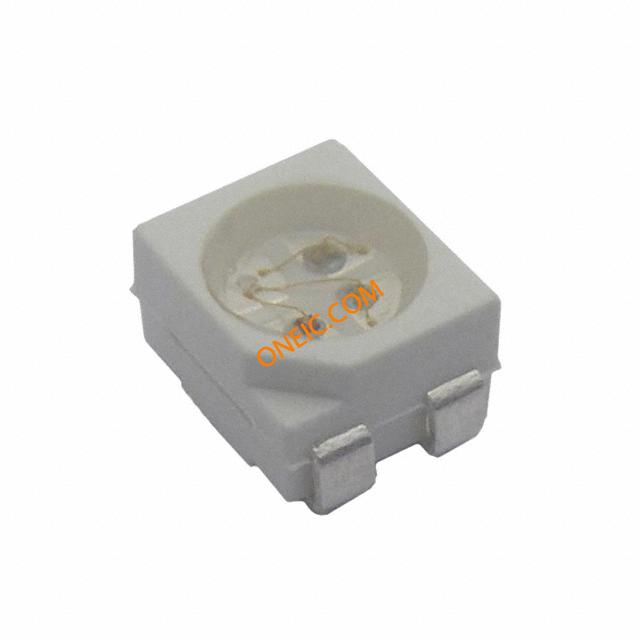

BIVAR SMP4-SBC 发光二极管, 表面安装, PLCC, 红/绿
** 1206 Package SMT s**
Bivar surface mount 1206 package LEDs can be used in almost any lighting or indication application. The water clear inner lens provides a narrow viewing angle and high luminous intensity making it suitable for small scale applications such as display, backlighting, and general indication. Low power consumption and excellent long life reliability are suitable for battery powered equipment. A wide variety of wavelength and intensity combinations are available to meet any illumination need.
额定功率 72 mW
正向电压 1.90 V
波长 631nm Red, 574nm Green
视角 120°
峰值波长 631 nm, 574 nm
测试电流 20 mA
正向电流 20 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 4
封装 PLCC-4
宽度 2.8 mm
高度 1.95 mm
封装 PLCC-4
颜色 Green, Red
产品生命周期 Obsolete
包装方式 Tape & Reel TR
制造应用 Portable Devices, Lighting
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMP4-SBC Bivar | 当前型号 | 当前型号 |
SMTL4-SBC Bivar | 类似代替 | SMP4-SBC和SMTL4-SBC的区别 |
