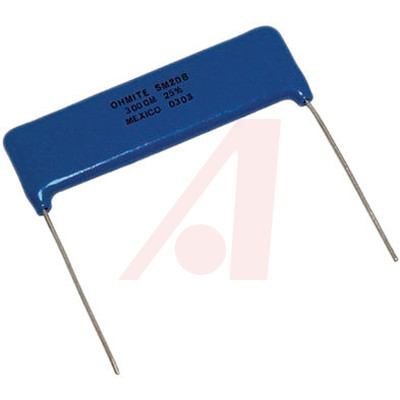

OHMITE SM104035007FE 通孔电阻器, 超薄-Mox, Slim-Mox系列, 5 Gohm, 1.5 W, ± 1%, 10 kV, 径向引线
The is a 5GR 1.5W through-hole mounting Thick Film Resistor with 0.032-inch standard radial leaded terminals and low outgassing epoxy standard coating. The Slim-Mox provides stable performance for a wide range of resistance values, with voltage ratings up to 25K. Low temperature coefficient is available for high stability circuit applications.
- .
- High dielectric
- .
- Low resistor noise
- .
- Non inductive
额定电压DC 10.0 kV
额定功率 1.5 W
产品系列 SM
电阻 5000000000 Ω
阻值偏差 ±1 %
工作温度Max 110 ℃
工作温度Min -55 ℃
额定电压 10 kV
安装方式 Through Hole
引脚数 2
封装 径向引线
长度 27.43 mm
宽度 0.1 mm
高度 8.64 mm
封装 径向引线
工作温度 -55℃ ~ 110℃
温度系数 ±25 ppm/℃
包装方式 Bulk
最小包装 100
制造应用 Medical, Power Management, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533210090
