S216S02概述

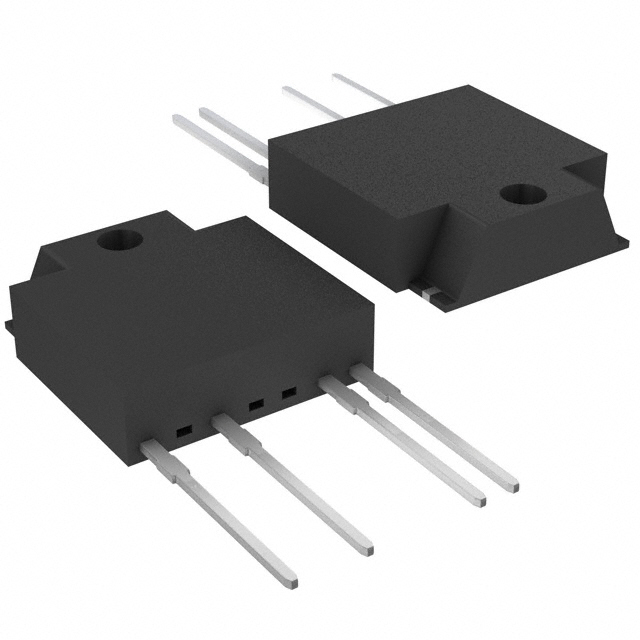

Relay SSR 50mA 1.4V DC-IN 16A 600V AC-OUT 4Pin SIP
■Features
1\. Compact, high radiation resin mold package
2\. RMS ON-state current
S112S01 Series: 12Arms at TC<= 70˚C With heat sink
S116S01 Series: 16Arms at TC<= 60˚C With heat sink
3\. Built-in zero-cross circuit
S112S02 / S212S02 / S116S02 /
4\. High repetitive peak OFF-state voltage
S112S01 / S112S02 / S116S01 / S116S02
VDRM : 400V
S212S01 / S212S02 / S216S01 / S216S02
VDRM : 600V
5\. Isolation voltage between input and output : Viso 4 000Vrms
6\. Recognized by UL, file No. E94758
S112S01 / S112S02
S116S01 / S116S02
7\. Approved by CSA, No. 63705
S112S01 / S112S02
S116S01 / S116S02
■Applications
1\. Copiers, laser beam printers
2\. Automatic vending machines
3\. FA equipment
